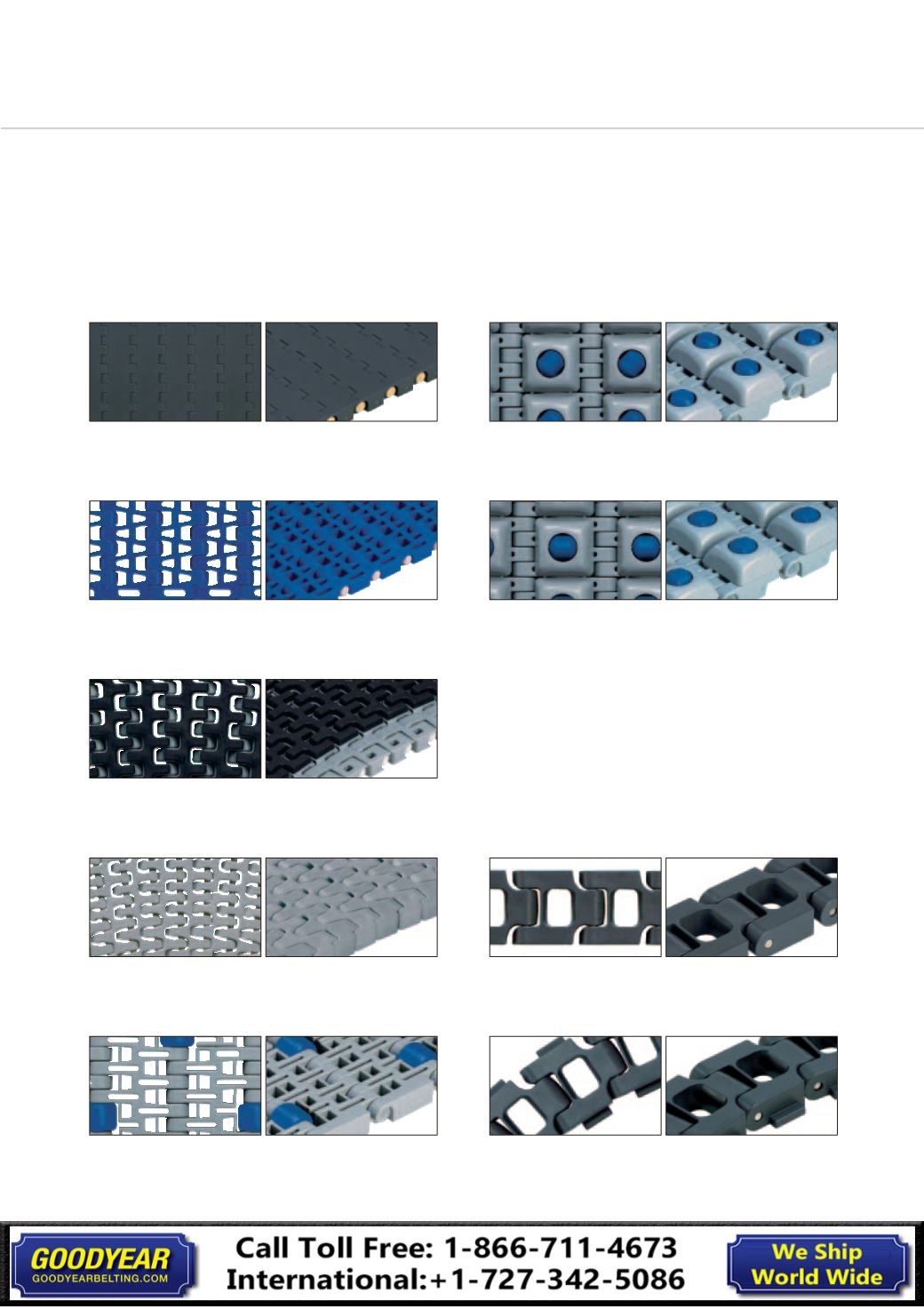

Variety of surfaces/styles of plastic modular belts
(selection only)
Flat Top
For straight conveying
Flush Grid
For straight conveying, air flow/high air
permeability /excellent for cooling
Radius GripTop
For straight and radius conveying/inclined/
declined
Standard andTight Radius*
For straight and radius conveying. *Tight Radius
= 1.6 collapse factor requires 30% less space!
Roller Top
For straight conveying/accumulation/
separation
Roller Top - 45˚
For straight conveying/45˚ transfer/alignment/
centering
Roller Top - 90˚
For straight conveying/90˚ transfer
(transversal movement)
H-ChainLINK
®
Series: Knuckle Chain
For straight conveying/heavy duty
H-ChainLINK
®
Series: Knuckle Chain Radius
For straight and radius conveying, heavy duty
Belt surface or style
To fulfill a specific application need, a process requirement or a defined function the belt surface/style
or the material inherent properties play a key role. See following some of the variety of surfaces, styles and
properties.
Pictures: Product view from top and bird’s view (running direction from left to right)
