Torque Team
®
V-Belts
Installation Guide
11. Matching belts
Banded Torque Team® V-belts eliminate belt whip and turnover
problems experienced with multiple V-belt sets under certain
drive conditions. The individual ribs in the Torque Team® belts
are produced at the same time and bonded together. Thus,
ordering matched sets of individual V-belts is unnecessary.
Using more than one set of Torque Team® belts on the same
drive is possible. For example, 2/5V1250 and 3/5V1250
Torque Team® belts will transmit the same power as five
individual 5V1250 V-belts. The 2/5V1250 identification
describes a Torque Team® belt with two 5V1250 individual
V-belts joined together.
DO NOT mix belt brands.
DO NOT use sets from different manufacturers together as they
may have different performance characteristics.
DO NOT use new and used Torque Team® belts in combined
sets.
DO NOT use Torque Team Plus® belts in combined sets unless
they are matched by the factory.
12. How to install Torque Team® belts
Never force Torque Team® belts into a sheave. Instead,
decrease the center distance between the sheaves, allowing
the belt to slip easily into the sheave grooves.
To tension a newly-installed Torque Team® belt, increase the
center distance between the sheaves. Tables 8 and 9 (below
and page 20) detail center distance allowances for installation
and tensioning of Classical and HY-T® Wedge Torque Team®
belts. For example, a 5/5V1250 Torque Team® belt requires
decreasing the center distance 2.1 inches to install the belt and
increasing the center distance 1.8 inches to maintain sufficient
tension.

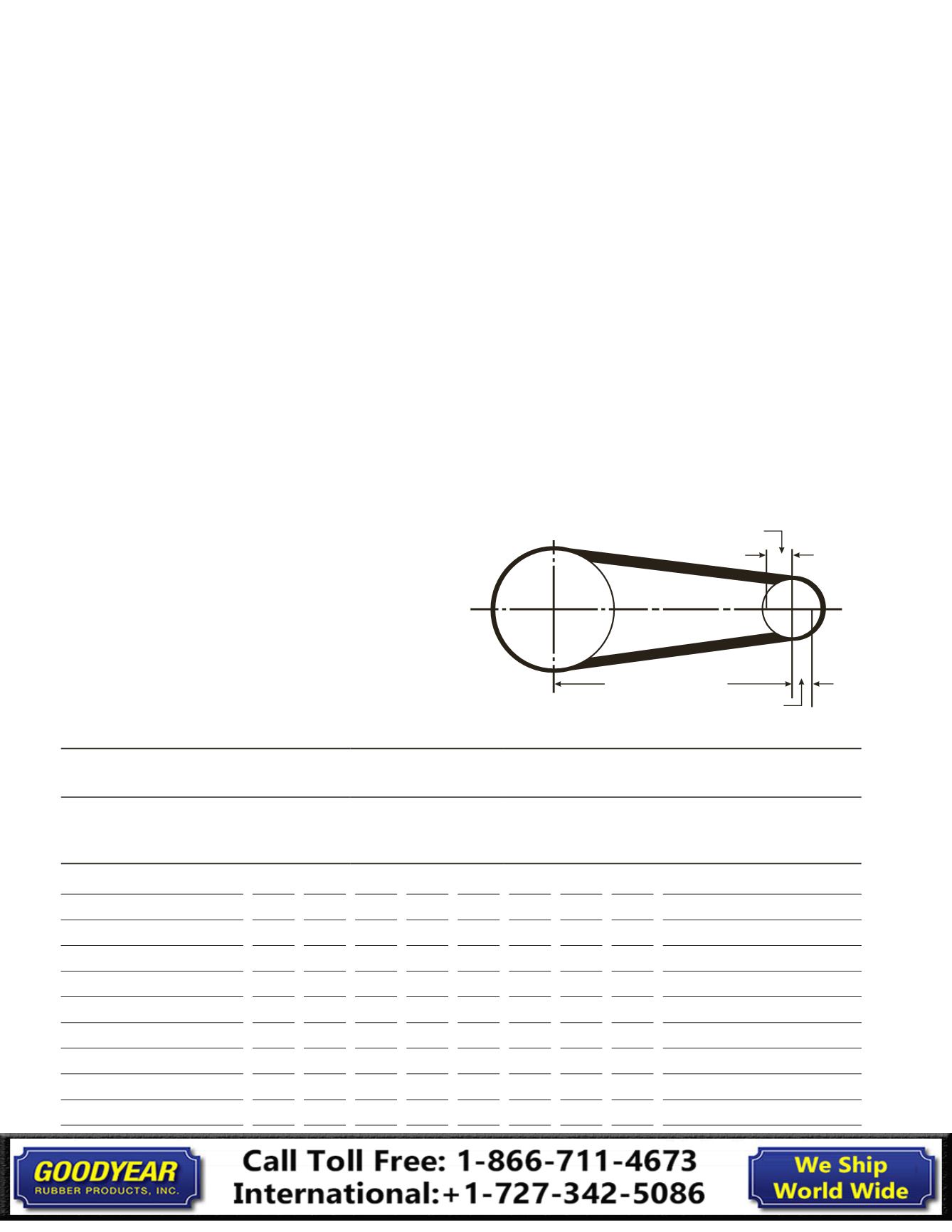

Shorter Center Distance for V-Belt Installation
Center Distance
Longer Center Distance for V-Belt Take-Up
Banded Belts
Installation Guide
Table 8 HY-T® Plus V-Belts
Minimum Allowance Below Standard Center Distance
for Installation of Belts (in.)
Standard Length
Designation
A
B
B
Torque
Team®
C
C
Torque
Team®
D
D
Torque
Team®
E
Minimum Allowance Above
Standard Center Distance
for Maintaining Tension All
Cross Sections
Up to and including 35
0.75 1.00 1.50
1.00
Over 35 to and including 55
0.75 1.00 1.50 1.50 2.00
1.50
Over 55 to and including 85
0.75 1.25 1.60 1.50 2.00
2.00
Over 85 to and including 112
1.00 1.25 1.60 1.50 2.00
2.50
Over 112 to and including 144 1.00 1.25 1.80 1.50 2.10 2.00 2.90
3.00
Over 144 to and including 180
1.25 1.80 2.00 2.20 2.00 3.00 2.50 3.50
Over 180 to and including 210
1.50 1.90 2.00 2.30 2.00 3.20 2.50 4.00
Over 210 to and including 240
1.50 2.00 2.00 2.50 2.50 3.20 2.50 4.50
Over 240 to and including 300
1.50 2.20 2.00 2.50 2.50 3.50 3.00 5.00
Over 300 to and including 390
2.00 2.70 2.60 3.60 3.00 6.00
Over 390
2.50 2.90 3.00 4.10 3.50 1.5% of belt length
