www.venair.com
9
VENA
®
SIL GLASS
Straight silicone hose reinforced with
fiberglass for high temperatures
Material:
High temperature resistant silicone
Textile reinforcement:
3 ply of fiberglass
Temperature range:
-60ºC to 235ºC, up to 250ºC for short
periods of time (-76ºF to 455ºF, up to 482ºF for short periods
of time)
Length:
From 1 to 4m (3 to 13ft). Can be cut to smaller
lengths upon request.
Smooth inner and outer appearance. Suitable for use in
straight lengths, with no bending requirements.
It is possible to produce any special shaped hose (e.g. elbow,
reducer, etc.) upon request.

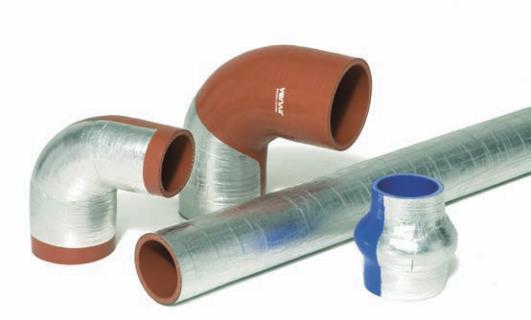

High temperature resistant
ALU protections
Special aluminum coated fiberglass designed to protect
a specific area or the whole silicone hose where focused
high temperatures are present.
All of our standard or customized products can be produ-
ced with this option.
Fasteners which loosen due to vibration are a challenge
in well-supported engine blocks. To keep engines blocks
sealed and prevent leaks we offer different types of hose/fit-
ting combinations.
These custom engineered connections help the engine block
to withstand extreme heat and vibration, while reducing cost,
assembly and warranty issues.

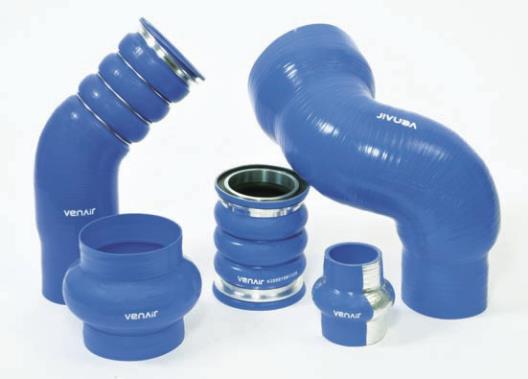

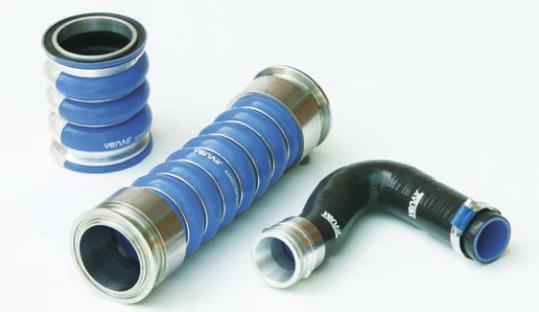

Custom engineered hose-fitting
combination
