8
VENA
®

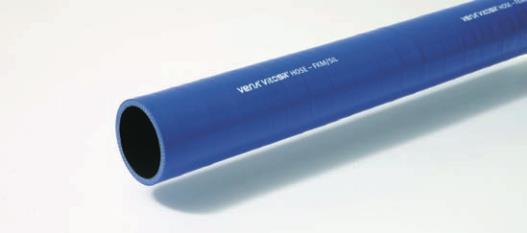

VITOSIL
Silicone hoses with an inner layer of FKM for conveying fuel,
oils and chemical products.
Excellent resistance to ozone and atmosphere in the harshest
of outdoor environments.
All of our standard or customized products can be produced
with this option.
SPECIAL APPLICATIONS
VENA
®
SIL 200 R/A
Oil-resistant silicone hose
External material:
Silicone VMQ (Vinyl Methyl Quality)
Internal material:
Silicone R/A (Oil-Resistant)
Textile reinforcement:
3 plies of polyester fabric
Temperature range:
-60ºC to 180ºC (-76ºF to 356ºF)
Standard wall thickness:
4,2mm (+1/-0,5mm) / 0,17’’ (+0,04/-
0,02’’)
Length:
From 1 to 4m (3 to 13ft). Can be cut to smaller lengths
upon request.
Smooth outer and inner appearance. Suitable for use in
straight lengths, with no bending requirements.
Application:
Suitable for engine oils and other mineral oils up
to +150ºC (302ºF) service temperature.
Diameter*
Working
pressure**
ISO 1402:2009
Bursting
pressure**
ISO 1402:2009
mm inch
bar
psi
bar
psi
6
1/4
16,17
235
48,50
703
8
1/3
14,03
203
42,10
611
10
3/8
11,50
167
34,50
500
13
1/2
9,70
141
29,10
422
16
5/8
8,27
120
24,80
360
18
5/7
7,50
109
22,50
326
19
3/4
7,27
105
21,80
316
22
7/8
6,17
89
18,50
268
25
1
5,90
86
17,70
257
28
1 1/8
5,40
78
16,20
235
30
1 3/16 5,13
74
15,40
223
32
1 1/4
4,90
71
14,70
213
35
1 3/8
4,57
66
13,70
199
38
1 1/2
4,30
62
12,90
187
40
1 9/16 4,13
60
12,40
180
44
1 3/4
3,83
56
11,50
167
45
1 3/4
3,77
55
11,30
164
Diameter*
Working
pressure**
ISO 1402:2009
Bursting
pressure**
ISO 1402:2009
mm inch
bar
psi
bar
psi
48
1 7/8
3,60
52
10,80
157
50
2
3,47
50
10,40
151
51
2
3,43
50
10,30
149
53
2
3,33
48
10,00
145
55
2 1/8
3,23
47
9,70
141
57
2 1/4
3,13
45
9,40
136
60
2 3/8
3,03
44
9,10
132
62
2 4/9
2,97
43
8,90
129
63
2 1/2
2,93
42
8,80
128
65
2 5/8
2,83
41
8,50
123
70
2 3/4
2,70
39
8,10
117
76
3
2,50
36
7,50
109
80
3 1/8
2,30
33
6,90
100
83
3 1/4
2,17
31
6,50
94
90
3 1/2
1,90
28
5,70
83
100
4
1,67
24
5,00
73
Engineered and manufactured
to your exact specifications
* Other diameters can also be manufactured. Please consult.
** Pressure data is noted at ambient temperature. Pressure values should be reduced by 20% for each increase of 100ºC (212ºF)
