10
From one-piece projects to serial production we support
manufacturers and engineers in developing and produ-
cing hoses which fulfill all of your system requirements.
Our silicone shapes are engineered and manufactured
according to the customer’s needs, so that we deliver in
accordance to drawing specifications or samples supplied
by the customer.
We produce hoses with a wide variety of constructions
with different characteristics and mechanical properties so
we can meet virtually all your requirements.

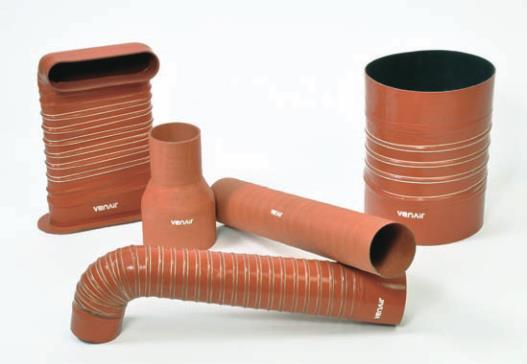

Custom engineered ducting
Custom engineered ducting is produced with layers of
fiberglass coated with SILICONE or NEOPRENE with steel
wire spiral inside the tube.
All of our custom engineering ductings maintain the
following main characteristics, light-weight construction
in combination with high mechanical strength, flexibi-
lity, temperature resistance, and comply with the latest
safety properties (flame, smoke, and toxicity). A special
construction compliant with the M1 fire (UNE. 23.727-90) and
F1 (NF F16-101) fume classification is also available.

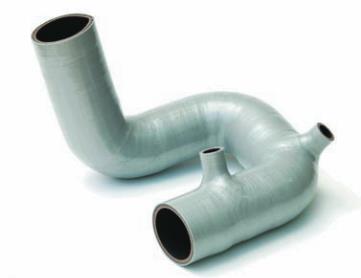

Custom engineered shapes

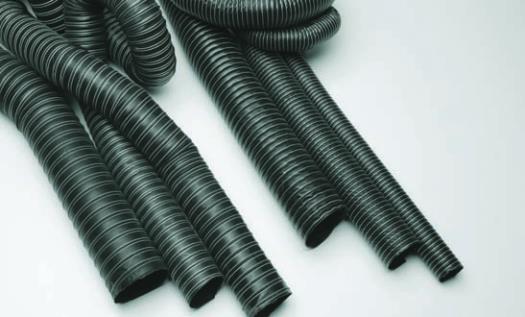

VENA
®
MT/MTD
Medium temperature

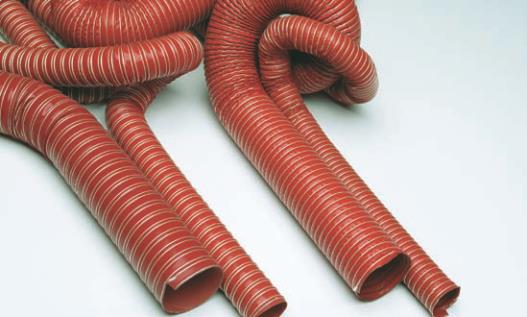

VENA
®
HT/HTD
High temperature
MT:
One layer of fiberglass with neoprene and visible steel
wire spiral inside the hose.
MTD:
Two layers of fiberglass with neoprene and steel wire
spiral between the layers.
Temperature range:
-55ºC to 125ºC (-67ºF to 257ºF)
Length:
From 1 to 6m (3 to 19ft) depending on the diameter.
Available in diameters between 13 and 300mm (1/2’’ to 12’’).
HT:
One layer of fiberglass with silicone and visible steel wire
spiral inside the hose.
HTD:
Two layers of fiberglass with silicone and steel wire spiral
between the layers.
Temperature range:
-55ºC to 260ºC (-67ºF to 500ºF).
Up to 300ºC (572ºF) for shorts periods of time.
Length:
From 1 to 6m (3 to 19ft) depending on the diameter.
Available in diameters between 13 and 300mm (1/2’’ to 12’’).
