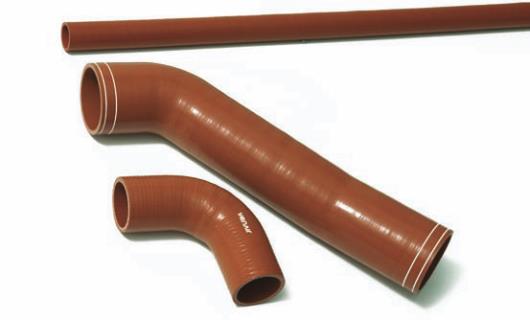

TURBOLOADER
VENA
®
SIL TURBO
External material
: Silicone VMQ (Vinyl Methyl Quality)
Textile reinforcement
: Aramide
Temperature range:
-60ºC to +200ºC, up to 220ºC for short
periods of time. (-76ºF to 392ºF, up to 428ºF for shorts periods
of time).
Standard length
: All of our standard or customized products

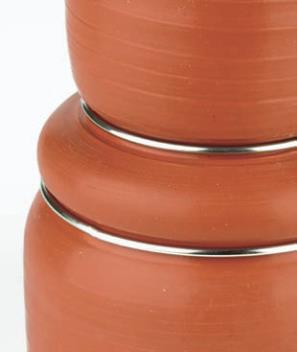

can be produced with this option. Corrugated compensators
are available (See table below).
Application
: Specifically used in turbocharger systems for
industrial vehicles, due to its high capacity to withstand
hydrocarbons and/or oil particles in the cooling pressurised
air.
Alternatives
:
a. Inner liner of FKM material.
b. Inner liner of FVMQ (Fluor-Vinyl Methyl Quality).
ID Diameter*
Rings
Humps
Total length
Cuffs
mm
inch
mm
inch
mm
inch
63
2 1/2’’
3
2
152
6,0
45
1,8
63
2 1/2’’
5
4
230
9,1
58
2,3
70
2 3/4’’
4
3
178
7,0
45
1,8
70
2 3/4’’
5
4
203
8,0
45
1,8
76
3’’
2
1
152
6,0
63
2,5
76
3’’
3
2
152
6,0
45
1,8
80
3 1/8’’
3
2
152
6,0
38
1,5
82
3 1/4’’
3
2
152
6,0
45
1,8
89
3 1/2’’
2
1
152
6,0
57
2,2
89
3 1/2’’
3
2
152
6,0
57
2,2
89
3 1/2’’
5
4
216
8,5
63
2,5
89
3 1/2’’
6
5
267
10,5
57
2,2
102
4’’
2
1
152
6,0
57
2,2
102
4’’
3
2
152
6,0
45
1,8
102
4’’
3
2
178
7,0
57
2,2
102
4’’
3
2
203
8,0
63
2,5
102
4’’
5
6
229
9,0
45
1,8
102
4’’
7
6
318
12,5
76
3,0
114
4 1/2’’
3
2
152
6,0
45
1,8
127
5’’
3
2
152
6,0
45
1,8
SILICONE HOSE FOR TUBOCHARGER
SYSTEMS - INTERCOOLER

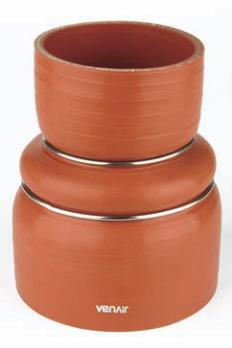

REDUCER
VENA
®
SIL TURBO
Inner diameter*
Humps Rings
Total length
mm
inch
mm inch
76/51
3 > 2
1
2
127
5
89/63 3 1/2 > 2 1/2
2
3
152
6
89/76
4 > 3
2
3
152
6
102/76
4 > 3
2
3
152
6
102/76
4 > 3 1/2
1
2
127
5
102/89
3 1/2 > 3
1
2
102
4
102/89
4 > 3 1/2
2
3
152
6
* Other diameters can also be manufactured. Please consult.
