SILICONE HOSES WITH INTERNAL SPIRAL
FOR HEATING AND COOLING SYSTEMS
Highly flexible plain silicone hose

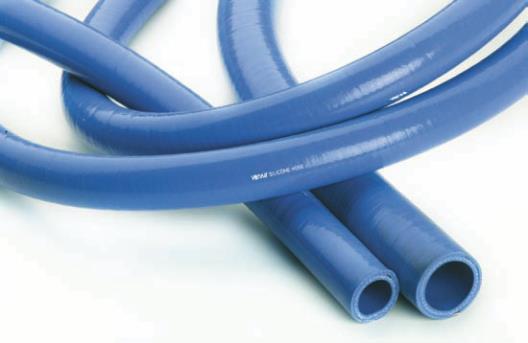

VENA® SIL 700V
Material: Silicone VMQ (Vinyl Methyl Quality)
Structure: Spiral steel wire between 3 plies of polyester
fabric covered in blue silicone.
Temperature range: -60ºC to +180ºC (-76ºF to +356ºF)
Length: From 1 to 4m (3,8 to 13,12ft). Can be cut to smaller
lengths upon customer request.
Main characteristic: High flexibility due to the wire spiral.
Smooth inner and outer appearance.
Suitable for use where a small bending radius is required.
Inner
diameter*
Working
pressure**
ISO 1402:2009
Bursting
pressure**
ISO 1402:2009
Bending
radius
ISO 1746:2000
mm inch bar psi bar psi mm inch
10 3/8 12,45 181 37 537 69 2 5/7
13 1/2 11,30 164 34 493 75 3
16 5/8 10,39 151 31 450 82 3 2/9
18 5/7 9,87 143 30 435 87 3 3/7
19 3/4 9,64 140 29 421 90 3 1/2
22 7/8 8,99 130 27 392 98 3 6/7
25 1 8,44 122 25 363 107 4 1/5
28 1 1/8 7,94 115 24 348 116 4 4/7
30 1 3/16 7,64 111 23 334 123 4 5/6
35 1 3/8 6,96 101 21 305 143 5 5/8
38 1 1/2 6,60 96 20 290 156 6 1/7
40 1 9/16 6,38 93 19 276 165 6 1/2
Inner
diameter*
Working
pressure**
ISO 1402:2009
Bursting
pressure**
ISO 1402:2009
Bending
radius
ISO 1746:2000
mm inch bar psi bar psi mm inch
45 1 3/4 5,86 85 18 261 191 7 1/2
48 1 7/8 5,58 81 17 247 208 8 1/5
51 2 5,32 77 16 232 227 9
55 2 1/8 4,98 72 15 218 255 10
60 2 3/8 4,60 67 14 203 294 11 4/7
63 2 1/2 4,39 64 13 189 321 12 2/3
70 2 3/4 3,93 57 12 174 394 15 1/2
76 3 3,57 52 11 160 468 18 3/7
80 3 1/8 3,34 48 10 145 526 20 5/7
85 3 1/3 3,08 45 9 131 608 24
90 3 1/2 2,83 41 8 116 703 27 2/3
100 4 2,37 34 7 102 939 37
Highly flexible convoluted
silicone hose

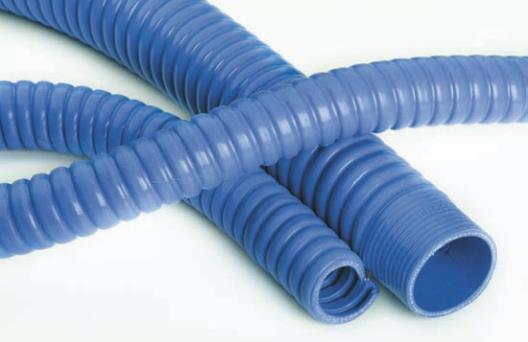

VENA® SIL 800
Material: Silicone VMQ (Vinyl Methyl Quality)
Structure: Spiral steel wire between 3 plies of polyester fabric
covered in blue silicone.
Temperature range: -60ºC to +180ºC (-76ºF to +356ºF)
Length: From 1 to 4m (3,8 to 13,12ft). Can be cut to smaller
lengths upon the request of the customer.
Main characteristic: High flexibility due to the wire spiral.
Corrugated inner and outer appearance. Suitable for use
where a very small bending radius is required.
Inner
diameter*
Working
pressure**
ISO 1402:2009
Bursting
pressure**
ISO 1402:2009
Bending
radius
ISO 1746:2000
mm inch bar psi bar psi mm inch
10 3/8 10,48 152 31 450 46 1 4/5
16 5/8 8,63 125 26 377 49 2
18 5/7 8,17 118 25 363 51 2
25 1 6,89 100 21 305 59 2 1/3
28 1 1/8 6,44 93 19 276 64 2 1/2
30 1 3/16 6,17 89 19 276 67 2 2/3
32 1 1/4 5,92 86 18 261 71 2 4/5
38 1 1/2 5,24 76 16 232 84 3 1/3
40 1 9/16 5,04 73 15 218 89 3 1/2
42 1 5/8 4,85 70 15 218 94 3 5/7
45 1 3/4 4,58 66 14 203 103 4
50 2 4,17 60 13 189 119 4 2/3
Inner
diameter*
Working
pressure**
ISO 1402:2009
Bursting
pressure**
ISO 1402:2009
Bending
radius
ISO 1746:2000
mm inch bar psi bar psi mm inch
51 2 4,09 59 12 174 122 4 4/5
52 2 4,01 58 12 174 125 5
53 2 3,94 57 12 174 129 5
55 2 1/8 3,79 55 11 160 136 5 1/3
60 2 3/8 3,45 50 10 145 156 6 1/7
63 2 1/2 3,26 47 10 145 168 6 3/5
70 2 3/4 2,85 41 9 131 200 7 7/8
76 3 2,53 37 8 116 231 9
80 3 1/8 2,33 34 7 102 253 10
90 3 1/2 1,86 27 6 87 313 12 1/3
100 4 1,45 21 4 58 380 15
* Other diameters can also be manufactured. Please consult.
** Pressure data is noted at ambient temperature. Pressure values should be reduced by 20% for each increase of 100ºC (212ºF)
