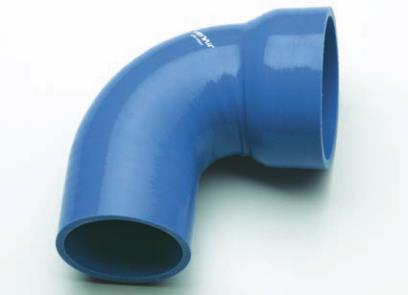

REDUCER ELBOW90º
Material: Silicone VMQ (Vinyl Methyl Quality)
Textile reinforcement : 3 or 4 plies of polyester fabric
Temperature range: -60ºC to +180ºC (-76ºF to +356ºF)
Standard wall thickness
4,2mm (+1/-0,5mm) | 0,17’’ (+0,04/-0,02’’)
Length : 100mm / 150mm (4’’ / 6’’)
Smooth inner and outer appearance.
Diameter* Length*
mm inch mm inch
25/19 1 > 3/4
32/25 1 1/4 > 1
38/25 1 1/2 > 1 100 4’’
38/32 1 1/2 > 1 1/4 150 6’’
38/35 1 1/2 > 1 3/8
51/45 2 > 1 3/4
Diameter* Length*
mm inch mm inch
60/50 2 3/8 > 2
63/51 2 1/2 > 2
70/50 2 3/4 > 2 100 4’’
70/60 2 3/4 > 2 3/8 150 6’’
76/51 3 > 2
76/63 3 > 2 1/2

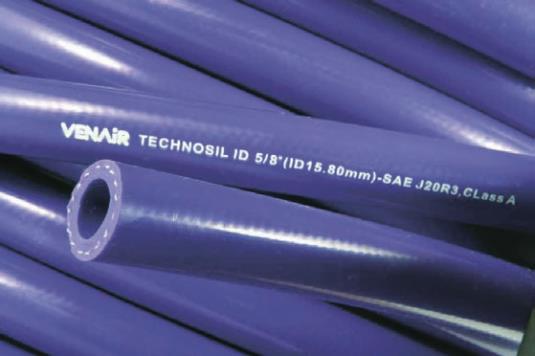

VENA TECHNOSIL
SAE J20R3 Class A
Heater Hose
Material: Silicone VMQ (Vinyl Methyl Quality)*
Textile reinforcement: Polyester braiding
Temperature range: -60ºC to +180ºC (-76ºF to +356ºF)
Wall thickness: Variable, depending on diameter.
Length: standard rolls of 76,2m (250 ft.) delivered on a plastic
spool. Other lengths are possible upon request.
Extruded hose with smooth inner and outer appearance. Meets
the requirements of SAE J20R3 Class A standard for cooling
systems in the automotive industry.
Inner diameter Outer diameter Working pressure
ISO 1402:2009
Bursting pressure
ISO 1402:2009
mm inch mm inch bar psi mm inch
6,30 1/4 13,20 1/2 9,60 139 28,80 418
7,90 1/3 15,00 3/5 8,80 128 26,50 384
9,50 3/8 16,60 2/3 7,70 112 23,00 334
12,70 1/2 20,30 4/5 6,80 99 20,30 294
15,80 5/8 24,50 1 5,90 86 17,80 258
19,00 3/4 27,90 1 5,10 74 15,20 220
22,00 7/8 31,30 1 1/4 5,00 73 15,00 218
25,40 1 34,50 1 1/3 4,90 71 14,80 215
28,00 1 1/8 38,00 1 1/2 4,40 64 13,20 191
32,00 1 1/4 43,00 1 2/3 3,90 57 11,80 171
* Other diameters and leg lengths are available.
* Higher temperature and pressure resistant construction available.
