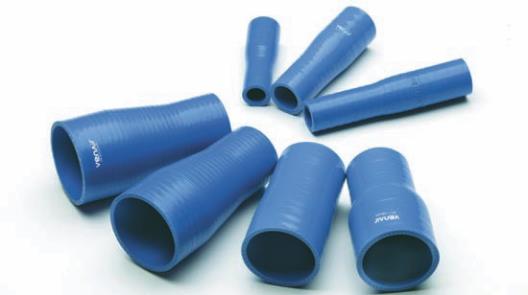

STRAIGHT REDUCER
Material: Silicone VMQ (Vinyl Methyl Quality)
Textile reinforcement: 3 or 4 plies of polyester fabric
Temperature range: -60ºC to +180ºC (-76ºF to +356ºF)
Standard wall thickness
4,2mm (+1/-0,5mm) | 0,17’’ (+0,04/-0,02’’)
Length: 100mm / 150mm (4’’ / 6’’)
Smooth inner and outer appearance.
Diameter* Length
mm inch mm inch
18/13 5/7 > 1/2
19/16 3/4 > 5/8
22/18 6/7 > 5/7
22/19 7/8 > 3/4
28/22 1 1/9 > 6/7
28/26 1 1/8 > 1
32/26 1 1/4 > 1
32/28 1 1/4 > 1 1/9 100 4’’
35/28 1 3/8 > 1 1/9 150 6’’
36/26 1 3/7 > 1
36/32 1 3/7 > 1 1/4
38/22 1 1/2 > 6/7
38/25 1 1/2 > 1
38/28 1 1/2 > 1 1/9
38/32 1 1/2 > 1 1/4
38/36 1 1/2 > 1 3/7
40/35 1 4/7 > 1 3/8
45/32 1 7/9 > 1 1/4
Diameter* Length
mm inch mm inch
45/38 1 3/4 > 1 1/2
51/38 2 > 1 1/2
51/45 2 > 1 3/4
54/51 2 1/8 > 2
60/50 2 3/8 > 2
63/51 2 1/2 > 2
67/51 2 5/8 > 2
70/50 2 3/4 > 2 100 4’’
70/57 2 3/4 > 2 1/4 150 6’’
70/60 2 3/4 > 2 3/8
76/51 3 > 2
76/63 3 > 2 1/2
76/67 3 > 2 5/8
80/70 3 1/8 > 2 3/4
90/80 3 1/2 > 3 1/8
102/76 4 > 3
127/100 5 > 4

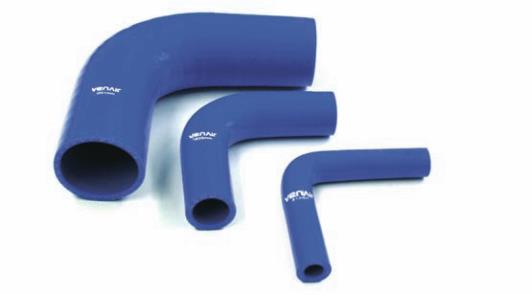

ELBOW90º / 45º / 135º
Material: Silicone VMQ (Vinyl Methyl Quality)
Textile reinforcement: 3 or 4 plies of polyester fabric
Temperature range: -60ºC to +180ºC (-76ºF to +356ºF)
Standard wall thickness
4,2mm (+1/-0,5mm) | 0,17’’ (+0,04/-0,02’’)
Length of legs: 100mm / 150mm / 200mm (4’’ / 6’’ / 8’’)
Smooth inner and outer appearance.
Diameter* Length*
mm inch mm inch
6 1/4
8 1/3
10 2/5
13 1/2
16 5/8
19 3/4 100 4’’
22 7/8 150 6’’
25 1 200 8’’
28 1 1/8
30 1 3/16
32 1 1/4
35 1 3/8
38 1 1/2
40 1 9/16
41 1 3/5
Diameter* Length*
mm inch mm inch
45 1 3/4
48 1 7/8
51 2
55 2 1/8
57 2 1/4
60 2 1/3 100 4’’
63 2 1/2 150 6’’
67 2 5/8 200 8’’
70 2 3/4
76 3
80 3 1/8
90 3 1/2
95 3 3/4
102 4
110 4 1/3
* Other diameters are available.
* Other diameters and leg lengths are available.
