3
SILICONE HOSES WITH POLYESTER REINFORCEMENTS
FOR HEATING AND COOLING SYSTEMS

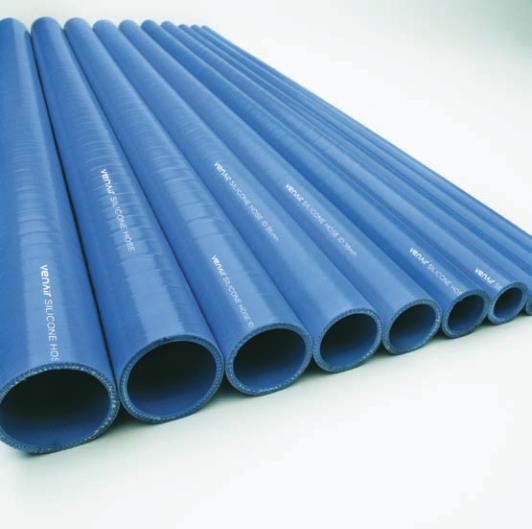

STRAIGHT HOSE
SAE J20 R1 Class A
VENA
®
SIL 200/240
Material
Silicone VMQ* (Vinyl Methyl Quality)
Textile reinforcement
SIL 200: 3 ply of polyester fabric
SIL 240: 4 ply of polyester fabric
Temperature range
-60ºC to +180ºC (-76ºF to +356ºF)
Standard wall thickness
SIL 200: 4,2mm (+1/-0,5mm) | 0,17’’ (+0,04/-0,02’’)
SIL 240: 5,2mm (+1/-0,5mm) | 0,20’’ (+0,04/-0,02’’)
Length
From 1 to 4m (3,8 to 13,12ft). Can be cut to smaller lengths
upon customer request.
Smooth outer and inner appearance. Suitable for use in straight
lengths, with no bending requirements. It can also be supplied
with another type of textile reinforcement (Aramide, fiberglass)
Inner diameter **
Working pressure ***
ISO 1402:2009
Bursting pressure ***
ISO 1402:2009
mm
inch
bar (Sil200)
bar (Sil240)
psi (Sil200)
psi (Sil240)
bar (Sil200)
bar (Sil240)
psi (Sil200)
psi (Sil240)
6
1/4
16,1
21,3
234
309
48,5
64,0
703
928
13
1/2
9,7
12,0
141
174
29,1
36,0
422
522
19
3/4
7,2
9,3
104
135
21,8
28,0
316
406
25
1
5,9
7,6
86
110
17,7
23,0
257
334
32
1 1/4
4,9
6,3
71
91
14,7
19,0
213
276
38
1 1/2
4,3
5,6
62
81
12,9
17,0
187
247
45
1 3/4
3,7
5,0
54
73
11,3
15,0
164
218
51
2
3,4
4,6
49
67
10,3
14,0
149
203
57
2 1/4
3,1
4,3
45
62
9,4
13,0
136
189
63
2 1/2
2,9
4,0
42
58
8,8
12,0
128
174
70
2 3/4
2,7
3,6
39
52
8,1
11,0
117
160
76
3
2,5
3,3
36
48
7,5
10,0
109
145
80
3 1/8
2,3
3,3
33
48
6,9
10,0
100
145
90
3 1/2
1,9
3,0
28
44
5,7
9,0
83
131
100
4
1,6
2,6
23
38
5,0
8,0
73
116
* Other constructions available for higher pressure and temperature applications.
** Other diameters can also be manufactured. Please consult.
*** Pressure data is noted at ambient temperature. Pressure values should be reduced by 20% for each increase of 100ºC (212ºF)

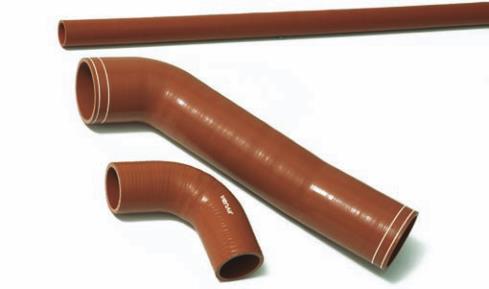

LONG LIFE SILICONE HOSES
Venair Long Life formulation and construction is the most
technically advanced solution to extreme operating conditions
and resistance to the modern aggressive coolants in the market.
Venair silicone hose products are used by the largest
Transportation Authorities and Fleet Companies worldwide to
reduce warranty and maintenance down time.
