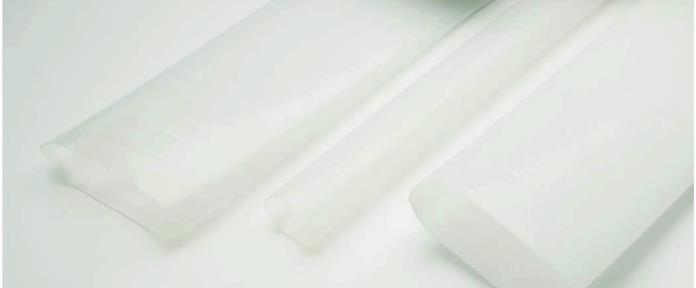

SILICONE
SLEEVES
Silicone sleeves are food and pharmaceutical grade, with or
without textile reinforcement, to convey liquids or semi liquids
at low pressure (gravity drop) or protecting against contamina-
tion outer-inner or inner-outer in areas of product handling, for
example in stirrers with Universal joints. The high flexibility allows
a perfect absorption of vibrations. The translucent aspect allows a
visual of the conveyed product.
Standard constructions
• Sleeve without textile reinforcement with a wall thick-
ness of 1,3mm (+1/-0,5mm) / 0,05 inches (+0,04/-0,002
inches)
• Sleeve with 1 textile reinforcement with a wall thickness
of 2,3mm (+1/-0,5mm) / 0,09 inches (+0,04/-0,002 in-
ches)
Maximum manufacturing length: 4m
Possibility of producing other wall thicknesses by request
Silicone material options
• US FDA (Foods and Drugs Administration) Standard 21
CFR 177.2600
• German BfR Standard part XV
• USP Class VI platinum cured
SPECIAL SILICONE
SHAPES
According to your requirement we produce standard silicone
shapes such as bend pipes (45º and 90º elbows, reductions),
expansion compensators and also customized shapes according
to your specifications.

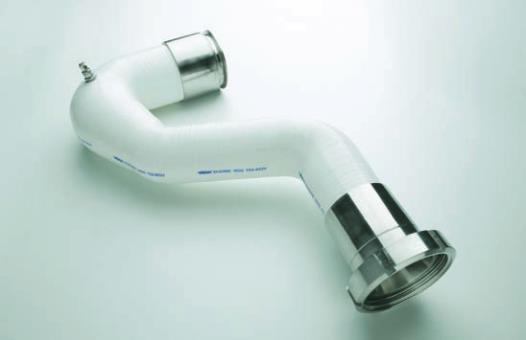

For example our new special range ADAPTSIL®, which allow you
to easily connect two, three, four or even more metal connections
with a flexible silicone hose adaptor crimped with any standard or
special fitting upon request.
For more information about ADAPTSIL® please consult the
Technical Datasheet.
* According to our SZR® SYSTEM (Without Retention Zone)
