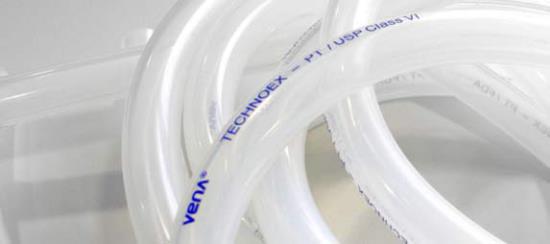

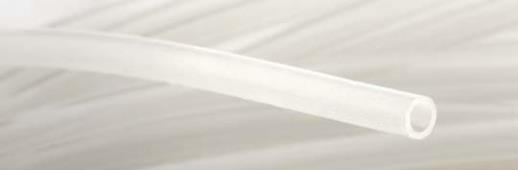

VENA

TECHNOEX

Elastomer

: Extruded platinum cured silicone produced in accor-

dance with:

•

US FDA (Foods and Drugs Administration) Standard 21

CFR 177.2600

•

German BfR Standard part XV

•

USP Class VI standard

Fabric reinforcement:

No

Stainless steel inside:

No

Inner appearance:

Translucent and smooth

Outer appearance:

Translucent and smooth

Standard length of manufacture:

50m (164ft)

Temperature scale:

-50ºC (-58ºF) / +200ºC (392ºF).

Peak at 220ºC (428ºF)

Inner Diameter

Outer Diameter

Nominal

Diameter

(mm)

(inch)

(mm)

(inch)

(mm)

0,79

1/32

2,38

3/32

1x2

0,79

1/32

3,96

5/32

1x4

1,59

1/16

3,18

1/8

1.5x3

1,59

1/16

4,76

3/16

1.5x5

2,38

3/32

3,96

5/32

2x4

2,38

3/32

5,55

7/32

2x5.5

3,18

1/8

7,90

5/16

3x8

3,18

1/8

4,76

3/16

3x5

3,18

1/8

6,30

1/4

3x6

3,18

1/8

9,52

3/8

3x10

4,76

3/16

7,90

5/16

5x8

4,76

3/16

9,52

3/8

5x10

4,76

3/16

6,30

1/4

4x6

4,76

3/16

11,11

7/16

4x11

6,35

1/4

7,90

5/16

6x8

6,35

1/4

9,52

3/8

6x10

6,35

1/4

11,11

7/16

6x11

6,35

1/4

12,70

1/2

6x13

7,93

5/16

11,11

7/16

8x11

7,93

5/16

12,70

1/2

8x13

7,93

5/16

14,30

9/16

8x14

9,52

3/8

12,70

1/2

10x13

9,52

3/8

14,30

9/16

10x14

9,52

3/8

15,90

5/8

10x16

11,11

7/16

14,30

9/16

11x14

11,11

7/16

15,87

5/8

11x16

12,70

1/2

15,90

5/8

13x16

12,70

1/2

17,50

11/16

13x18

12,70

1/2

19,00

3/4

13x19

15,80

5/8

20,63

13/16

16x21

15,80

5/8

22,20

7/8

16x22

19,05

3/4

25,40

1

19x25

25,40

1

32,00

1 1/4

25x32

32,00

1 1/4

38,00

1 1/2

32x38

38,00

1 1/2

51,00

2

38x51

Typical Physical Properties

ASTM Method Value

Hardness Shore A, 15 sec

D2240-02

60

Color

Translucent

Tensile Strength

D412-98

1305 (9)

Ultimate elongation (%)

D412-98

>270

Tear resistance lb. -f/in (kN/m)

D1004-94

100 (18)

Specific Gravity

D792-00

1,16

Water Absorption (%)

D570-98

0,06

Compression set constant deflection D395-01

36

(% at 70ºC during 22 hours)

Method B

Brittle Temperature (ºC)

-50

Maximum recommended operating

temperature (ºC)

D746-98

200

Sterilization Method

Autoclavable

Gas

Radiation

Steam 30 minutes at 1 bar (141ºC)

Ethylene oxide Radiation up to 2,5

MRad
