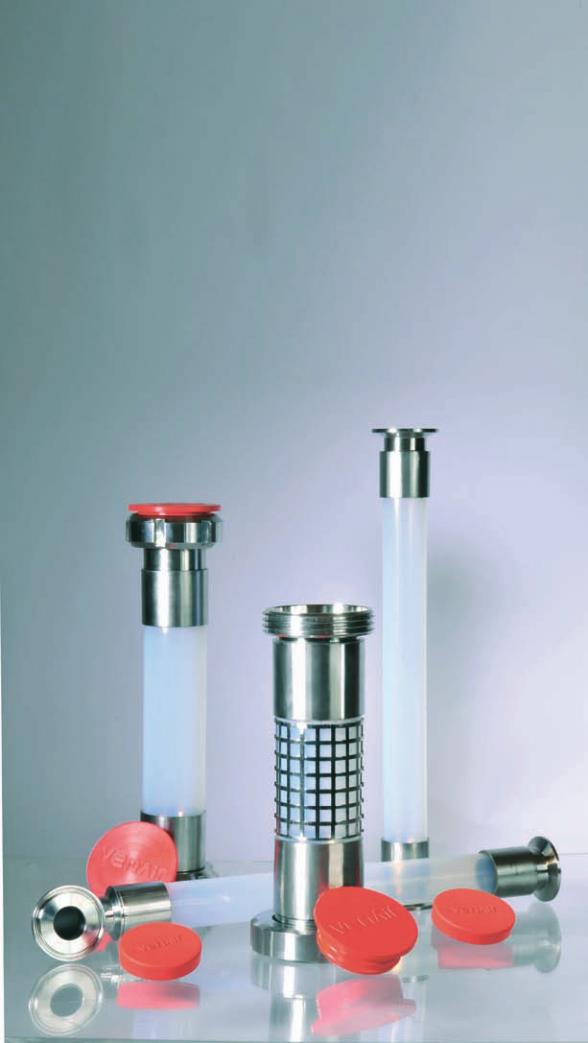

VENA VIEW
Sight Flow Indicators
FEP Food Grade translucent wall with aseptic fittings for applica-
tions where visual inspection of the transported material is requi-
red.
Can be mounted in-line and makes it very easy for the operators
to view product flow in any process or system.
An armored housing version is also available per request.
Inner
diameter Connection and Lenght Working
pressure
Bursting
pressure
Working
pressure with
housing
Bursting
pressure with
housing
25 mm
0,98 inch
SMS F/F SMS F/M SMS M/M
8 bar
116 psi
32 bar
464 psi
12 bar
174 psi
48 bar
696 psi
160 mm (6,30 inch)
DIN F/F DIN F/M DIN M/M
160 mm (6,30 inch)
CLAMP / CLAMP
160 mm (6,30 inch)
32 mm
1,26 inch
DIN F/F DIN F/M DIN M/M 7 bar
101 psi
28 bar
406 psi
12 bar
174 psi
48 bar
696 psi 205mm
8,07 inch
200mm
7,87 inch
190mm
7,48 inch
38 mm
1,50 inch
SMS F/F SMS F/M SMS M/M
6 bar
87 psi
25 bar
362 psi
12 bar
174 psi
48 bar
696 psi
210 mm
8,27 inch
205 mm
8,07 inch
200 mm
7,87 inch
DIN F/F DIN F/M DIN M/M
210 mm
8,27 inch
205 mm
8,07 inch
200 mm
7,87 inch
CLAMP/CLAMP
195 mm (7,68 inch)
51 mm
2,00 inch
SMS F/F SMS F/M SMS M/M
5 bar
72 psi
22 bar
319 psi
10 bar
145 psi
47 bar
681 psi
240 mm
9,45 inch
235 mm
9,25 inch
230 mm
9,06 inch
DIN F/F DIN F/M DIN M/M
240mm
9,45 inch
235mm
9,25 inch
230mm
9,06 inch
CLAMP/CLAMP
220mm (8,66 inch)
63 mm
2,48 inch
SMS F/F SMS F/M SMS M/M
5 bar
72 psi
22 bar
319 psi
10 bar
145 psi
40 bar
580 psi
295 mm
11,61 inch
290 mm
11,42 inch
285 mm
11,22 inch
DIN F/F DIN F/M DIN M/M
295 mm
11,61 inch
290 mm
11,42 inch
285 mm
11,22 inch
CLAMP/CLAMP
265 mm (10,43 inch)
76 mm
2,99 inch
SMS F/F SMS F/M SMS M/M
5 bar
72 psi
20 bar
290 psi
9 bar
130 psi
36 bar
522 psi
315 mm
12,40 inch
310 mm
12,20 inch
305 mm
12,01 inch
DIN F/F DIN F/M DIN M/M
315 mm
12,40 inch
310 mm
12,20 inch
305 mm
12,01 inch
CLAMP/CLAMP
285 mm (11,22 inch)
102 mm
4,02 inch
SMS F/F SMS F/M SMS M/M
4 bar
58 psi
16 bar
232 psi
7 bar
101 psi
14 bar
203 psi
320 mm
12,60 inch
315 mm
12,40 inch
310 mm
12,20 inch
DIN F/F DIN F/M DIN M/M
320 mm
12,60 inch
315 mm
12,40 inch
340 mm
13,39 inch
CLAMP/CLAMP
295 mm (11,61 inch)
• SZR® System (Without Retention System)
• -60ºC (-76ºF) to 180ºC (356ºF) Max Operating Temperature
• Smooth non-stick surface
• Durable: for extended use, compatible with many chemicals
and aggressive products
• Suitable for Cleaning with CIP and SIP
