Fuel Tanker Overfill Detection
800.355.1991 Dixon Bayco 2013 131
Overfill Replacements
Overfill
Replacement Parts

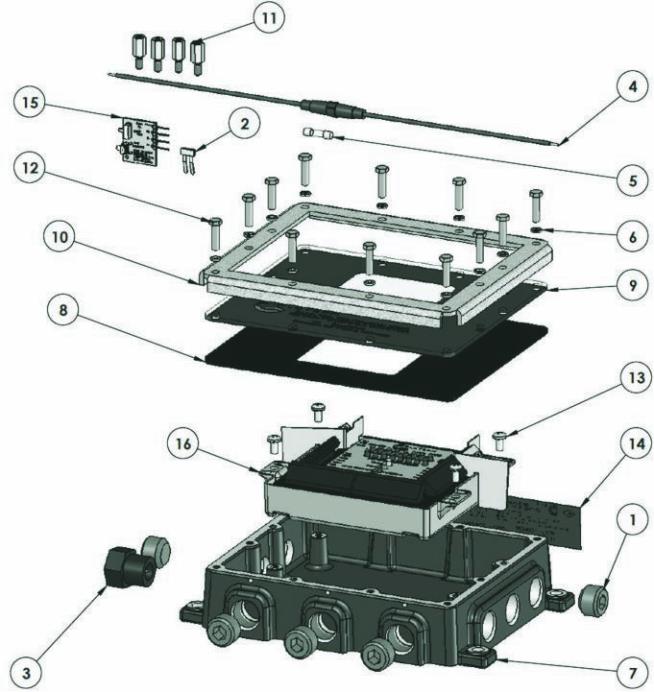

Bill of Materials
Item # Description Part # FT207 FT208
1 polypropylene pipe plug 10103 n/a 5
2 jumper - cross connector 10196 1 1
3 reset switch assembly 10200A n/a 1
4 plastic fuse holder 10356 1 1
5 brass/glass fuse - 1/2 amp 10358 (was FT9039) 1 5
6 stainless steel lock washer 10375SS 12 12
7 aluminum box 10430AL n/a 1
8 neoprene gasket 10432NP (was FT9045) 1 1
9 acrylic bezel 10433PL (was FT9036) 1 1
10 aluminum frame 10434AL 1 1
11 aluminum standoff (Only used in older units) 10435AL n/a 4
12 stainless steel screw 10436SS 12 12
13 stainless steel screw - stems 10437SS 4 4
14 chrome mylar label 10438A n/a 1
15 programming board assembly 10459 (was FT9035) 1 1
16 potted OBM 10465 1 1
FT207/FT208 Series Checkmate Black & White 2 Wire,
Programmable Onboard Monitor
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Repair Kits
Part # Description Includes Item #
FT9031 replacement fuse holder with 1/2 amp fuse 11, 12
FT9036 replacement lid, bezel, screws & lockwashers 6, 8, 9, 10, 12
FT9040 replacement Checkmate housing with lid 1, 6-13
