Fuel Tanker Overfill Detection
800.355.1991 130 Dixon Bayco 2013
Overfill
Replacement Parts
Overfill Replacements

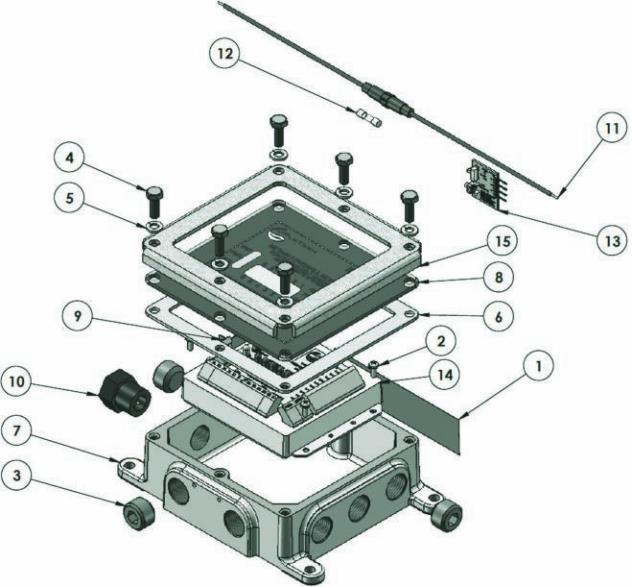

Bill of Materials
Item # Description Part # FT203P FT203SPEC FT204P
1 chrome mylar label 10078 n/a n/a 1
2 stainless steel screw 10086 4 4 4
3 polypropylene pipe plug 10103 n/a n/a 3
4 stainless steel screw 10110 6 8 6
5 stainless steel lock washer - 1/4" 10111 6 8 6
6 neoprene gasket 10131 (was FT9053) 1 n/a 1
7 aluminum onboard monitor housing 10136 n/a n/a 1
8 acrylic bezel 10143 (was FT9006) 1 n/a 1
9 jumper - cross connector 10196 1 1 1
10 reset switch assembly 10200A n/a n/a 1
11 plastic fuse holder 10356 1 1 1
12 brass/glass fuse - 1/2 amp 10358 (was FT9039) 1 1 1
13 programming board assembly 10459 (was FT9035) 1 1 1
14 OBM assy potted 10460 1 1 1
15 aluminum frame lid 10470AL (was FT9054) 1 n/a 1

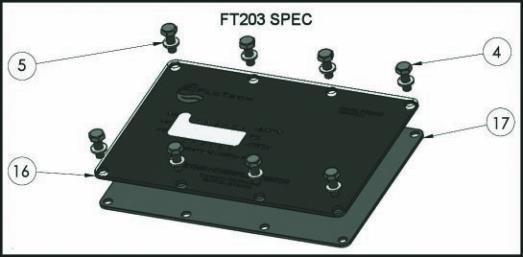

16 bezel for Civacon 3250 & 3252 boxes 10520PL n/a 1 n/a
17 neoprene gasket for 10520PL 10521NP (was FT9065) n/a 1 n/a
FT203/FT204 Series R/OM Type Red & Black 2 Wire, Onboard Monitor
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Repair Kits
Part # Description Includes Item #
FT9003 replacement monitor housing 2-8, 15
FT9004 replacement monitor hardware kit 4-6, 8, 15
FT9031 replacement fuse holder with 1/2 amp fuse 11, 12
FT9059 replacement faceplate and bezel for FT204P 4, 5, 6, 8, 15
FT9064 replacement gasket adn bezel for FT203 SPEC 16, 17
