Fuel Tanker Overfill Detection
800.355.1991 132 Dixon Bayco 2013
Overfill
Replacement Parts
Overfill Replacements

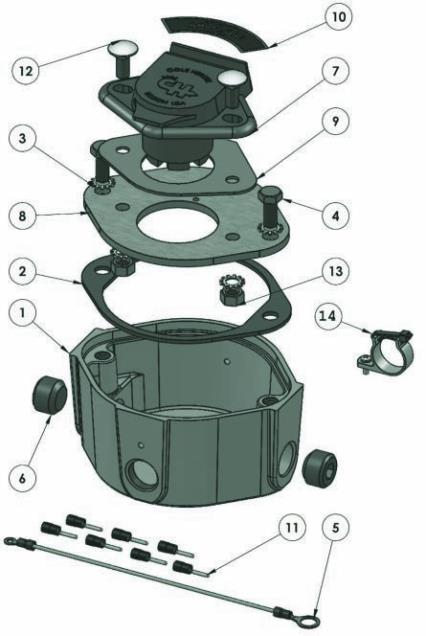

Bill of Materials
Item # Description Part #
FT302 FT305 FT306 FT312 FT315 FT316
1 aluminum housing 10031 (was FT9007) 1 1 1 n/a n/a n/a
2 neoprene gasket 10038 (was FT9032) 1 1 1 1 1 1
3 stainless steel lock washer 10092 4 4 4 4 4 4
4 stainless steel screw 10093 2 2 2 2 2 2
5 wire, assembly, socket 10095 1 1 1 1 1 1
6 polypropylene pipe plug 10103 2 2 2 2 2 2
7 J560 type socket 10119 (was FT9029) 1 1 1 1 1 1
8 aluminum face plate 10120 1 1 1 1 1 1
9 neoprene gasket 10121 1 1 1 1 1 1
10A aluminum name plate - float 10122 1 n/a n/a n/a n/a n/a
10B aluminum name plate - optic 10235 n/a n/a 1 n/a 1 1
10C aluminum name plate - thermistor 10244 n/a 1 n/a n/a n/a n/a
11 terminal pin 10123 7 7 7 7 7 7
12 stainless steel carriage bolt 10507SS 2 2 2 2 2 2
13 stainless steel nut 10508SS 2 2 2 2 2 2
14 nylon clamp assembly 10264 n/a 1 n/a n/a 1 n/a
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Repair Kits
Part # Description Includes Item #
FT312 face plate assembly- API float J560 socket 2 - 14
FT315 face plate assembly- Thermistor J560 socket 2 - 14
FT316 face plate assembly- Optic J560 socket 2 - 14
Single J560 Sockets
