Fuel Tanker Overfill Detection
800.355.1991 Dixon Bayco 2013 129
Overfill Replacements
Overfill
Replacement Parts

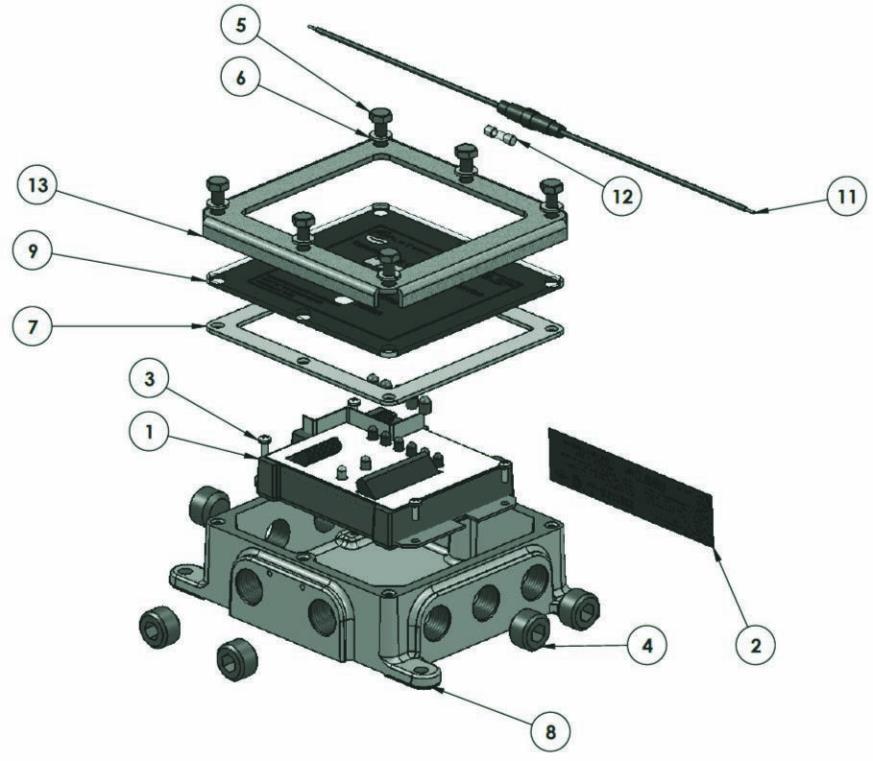

Bill of Materials
Item # Description Part # FT102 FT103
1 5 wire onboard monitor assembly 10077 1 1
2 chrome mylar label 10079 n/a 1
3 stainless steel screw 10086 4 4
4 polypropylene pipe plug 10103 n/a 5
5 stainless steel screw 10110 6 6
6 stainless steel lockwasher - 1/4" 10111 6 6
7 neoprene gasket 10131 (was FT9053) 1 1
8 aluminum onboard monitor housing 10136 n/a 1
9 acrylic bezel 10142 (was FT9005) 1 1
10 PVC L.E.D. cover 10207 5 5
11 plastic fuse holder 10356 1 1
12 brass/glass fuse - 1/4 amp 10357 (was FT9039) 1 1
13 aluminum frame lid 10470AL 1 1
FT102/FT103 5 Wire, API Optic On-Board Monitor
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Repair Kits
Part # Description Includes Item #
FT9003 replacement monitor housing 3-10, 13
FT9004 replacement monitor hardware kit 5, 6, 7, 9, 13
FT9030 replacement fuse holder with 1/4 amp fuse 11, 12
