Fuel Tanker Overfill Detection
800.355.1991 128 Dixon Bayco 2013
Overfill
Replacement Parts
Overfill Replacements
Note: probe is not replaceable.

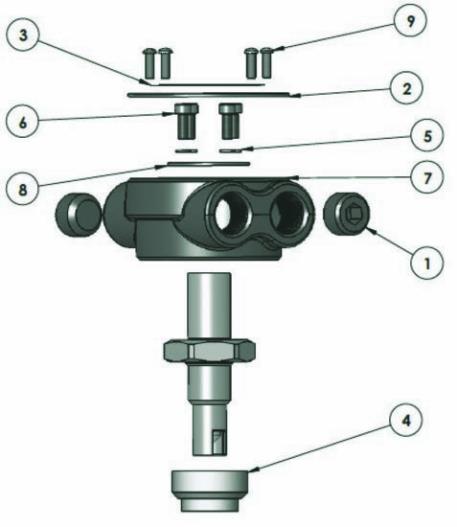

FT152 & FT206 Retain Sensor Housings
Bill of Materials
Item # Description Part # Qty
1 polypropylene pipe plug 10103 2
2 aluminum retain sensor lid 10134 1
3 mylar label - retain sensor 10343 1
4 aluminum threaded collar 10347
(was FT9050) 1
5 stainless steel lockwasher 10375SS 4
6 stainless steel screw 10376SS 4
7 nylon retain sensor housing 10471NY 1
8 aluminum back-up plate 10476AL 1
9 stainless steel screw 10477SS 4

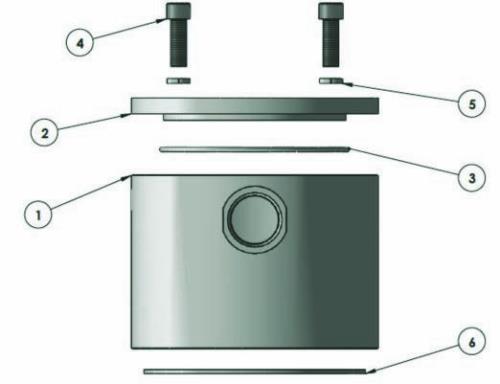

Bill of Materials
Item # Description Part # Qty
1 3" stainless steel NPSM housing 10540SS 1
2 aluminum housing lid 10541AL 1
3 Buna-N O-ring 10542BN 1
4 stainless steel screw 10554SS 4
5 stainless steel lock washer 40099SS 4
6 PTFE gasket 40190TF 1
FT191S Overfill Sensor Housing
Stainless Steel Probes
Part # Description
FT100S 5 wire overfill detection, 316 stainless steel probe
only 7"
FT150S black & white 2 wire overfill detection, 316 stainless
steel probe only 7"
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Repair Kits
Part # Description Includes
Item #
FT9055 replacement hardware kit 2, 3
FT9068 replacement contact block attachment
screws and washers (4 each) 5, 6
