Fuel Tanker Overfill Detection
800.355.1991 Dixon Bayco 2013 127
Overfill Replacements
Overfill
Replacement Parts
FT101, FT151 & FT202 Series Overfill Sensor Housings
Repair Kits
Part # Description Includes
Item #
FT100 Replacement 5 wire overfill detection
probe. -7" 2
FT100-12 Replacement 5 wire overfill detection
probe. -12" 2
FT100-18 Replacement 5 wire overfill detection
probe. -18" 2
FT150 Replacement black & white 2 wire overfill
detection probe. - 7" 2
FT150-12 Replacement black & white 2 wire overfill
detection probe. - 12" 2
FT150-18 Replacement black & white 2 wire overfill
detection probe. - 18" 2
FT201 Replacement red & black 2 wire overfill
detection probe. - 7" 2
FT201-12 Replacement red & black 2 wire overfill
detection probe. - 12" 2
FT201-18 Replacement red & black 2 wire overfill
detection probe. - 18" 2
FT9000 Complete replacement sensor housing
(without probe) 1, 3 -13
FT9001 Sensor housing gasket & O-ring kit 5-7, 13
FT9002 Sensor housing gasket, O-ring &
hardware kit
1, 3-8,
12, 13
FT9011 Sensor housing cap with screws & lock
washers 3, 4, 10

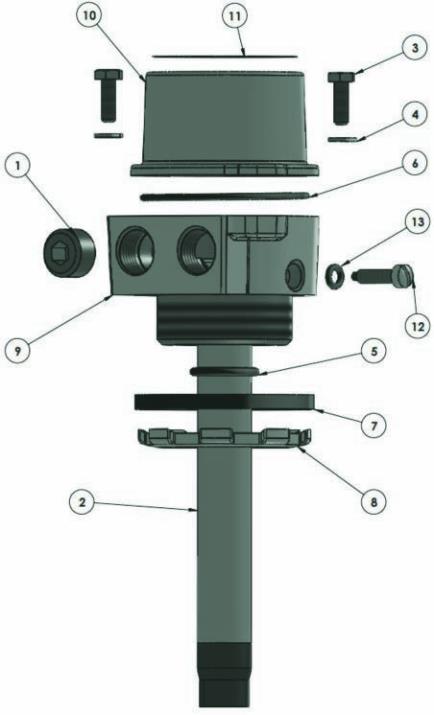

Bill of Materials
Item # Description Part # Qty
1 polypropylene pipe plug 10103 1
2 probe see repair kits 1
3 stainless steel screw 10110 2
4 stainless steel lock washer - 1/4" 10111 2
5 Viton® O-ring 10125 (was FT9027) 1
6 Buna O-ring 10126 (was FT9049) 1
7 Buna-n gasket 250-G-BU
(was FT9026) 1
8 steel lock nut 10128 (was FT9012) 1
9 aluminum sensor housing 10183 (was FT9033) 1
10 aluminum sensor housing cap 10185 1
11 mylar label - overfill sensor 10203 1
12 stainless steel screw with nylon insert 10212 1
13 Buna-N O-ring 10213 1
