Dixon Northline Aluminum LDH Gate Valves
Large Diameter (LDH)
Storz x Female Swivel

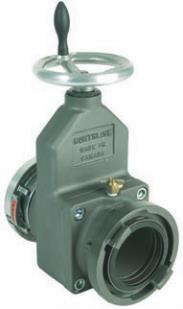

Storz x Storz

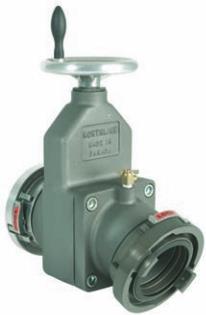

Storz x Storz 30° with Air Bleeder
These gate valves can be used on the suction intake and discharge sides of a pumper or on a
hydrant. The valve is made of lightweight aluminum alloy. It has a non-rising stem, with an air
bleed off. It is available with Storz or threaded combinations, 30° elbow, and needs only 8 easy
turns to open and close.
•
425 PSI
test pressure,
280 PSI
working pressure without relief valve,
750 PSI
minimum burst pressure
•
4½" minimum waterway
•
body of valve - high strength aluminum alloy, 356-T6
•
finish hardcoat anodized throughout - minimum thickness 0.001"
Storz
Storz
Part #
Length Width Height
Wt.
Lbs.
4"
4"
SGV440
9"
6.25" 19.5"
16.5
4"
5"
SGV450
9"
7.75" 19.5"
16.5
5"
4"
SGV540
9"
7.75" 19.5"
20.0
5"
5"
SGV550
9"
7.75" 19.5"
20.0
Note: all measurements include handles
Inlet
Storz
Outlet
Female Swivel
Part #
Length Width Height
Wt.
Lbs.
4"
4"
FSGV440___ *
9
6.0 19.5 18.5
4"
4½"
FSGV445___ *
9
6.5 19.5 18.5
4"
5"
FSGV450___ *
9
7.0 19.5 18.5
4"
6"
FSGV460___ *
9
8.0 19.5 19.0
5"
4"
FSGV540___ *
9
6.0 19.5 20.0
5"
4½"
FSGV545___ *
9
6.5 19.5 20.0
5"
5"
FSGV550___ *
9
7.0 19.5 20.0
5"
6"
FSGV560___ *
9
8.0 19.5 21.0
Note: all measurements include handles
* customer to specify thread
Storz
Storz
Part #
Length Width Height
Wt.
Lbs.
4"
4"
SGV30-440
9.0 6.25 20.0 16.5
4"
5"
SGV30-450
9.0 7.75 20.0 16.5
5"
4"
SGV30-540
9.0 7.75 20.0 20.0
5"
5"
SGV30-550
9.0 7.75 20.0 20.0
Note: all measurements include handles
Storz x Storz
Storz x Storz 30° with air bleeder
Storz x female swivel
