Dixon Fire 2012
US: 877.712.6179 Canada: 800.786.9697
Aluminum Valves & Wyes
B
Aluminum
Valves &
Wyes

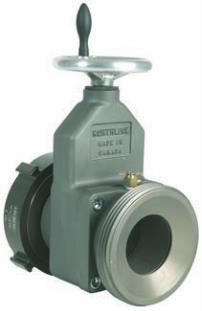

Dixon Northline Aluminum LDH Gate Valves
Large Diameter (LDH)
Storz x 30° Female Swivel
Female x Male
These gate valves can be used on the suction intake and discharge sides of a pumper or on a
hydrant. The valve is made of lightweight aluminum alloy. It has a non-rising stem, with an air
bleed off. It is available with Storz or threaded combinations, 30° elbow, and needs only 8 easy
turns to open and close.
•
425 PSI
test pressure,
280 PSI
working pressure without relief valve,
750 PSI
minimum burst pressure
•
4½" minimum waterway
•
body of valve - high strength aluminum alloy, 356-T6
•
finish hardcoat anodized throughout - minimum thickness 0.001"
Note: all measurements include handles
Add "R" to above part number if pressure relief valve required - (FSGVR30)
* customer to specify thread
Storz
Female Swivel
Part #
Length Width Height
Wt.
Lbs.
4"
4"
FSGV30-440___ *
9.0 6.0"
19.5"
21.0
4"
4½"
FSGV30-445___ *
9.0 6.5"
19.5"
21.0
4"
5"
FSGV30-450___ *
9.0 7.0"
19.5"
21.5
4"
6"
FSGV30-460___ *
9.0 8.0"
19.5"
21.5
5"
4"
FSGV30-540___ *
9.0 6.0"
19.5"
22.0
5"
4½"
FSGV30-545___ *
9.0 6.5"
19.5"
22.0
5"
5"
FSGV30-550___ *
9.0 7.0"
19.5"
22.5
5"
6"
FSGV30-560___ *
9.0 8.0"
19.5"
22.5
Note: all measurements include handles
* customer to specify thread
Female
Male
Part #
Length Width Height
Wt.
Lbs.
4"
4"
FMGV40___40___ *
9.0 6.25 19.5 16.5
4"
4½"
FMGV40___45___ *
9.0 6.50 19.5 16.5
4"
5"
FMGV40___50___ *
9.0 7.75 19.5 16.5
4"
6"
FMGV40___60___ *
9.0 7.75 19.5 19.0
4½"
4"
FMGV45___40___ *
9.0 7.75 19.5 18.5
4½"
4½"
FMGV45___45___ *
9.0 7.75 19.5 18.5
4½"
5"
FMGV45___50___ *
9.0 7.75 19.5 18.5
4½"
6"
FMGV45___60___ *
9.0 7.75 19.5 19.0
5"
4"
FMGV50___40___ *
9.0 7.75 19.5 20.0
5"
4½"
FMGV50___45___ *
9.0 7.75 19.5 20.0
5"
5"
FMGV50___50___ *
9.0 7.75 19.5 20.0
5"
6"
FMGV50___60___ *
9.0 7.75 19.5 21.0
6"
6"
FMGV60___60___ *
9.0 7.75 19.5 22.0
with pressure relief valve
Storz x 30° female swivel
female by male
