15
Dixon
877.963.4966
♦
dixonvalve.com
Couplers
EZ Boss-Lock Type D Couplers
Size
356T6
Aluminum
Part #
Brass
Part #
316 SS
Part #
¾" x½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
---
AD075EZ
AD100EZ
---
AD150EZ
AD200EZ
AD250EZ
AD300EZ
AD400EZ
AD500EZ
AD600EZ
AD800EZ
1
---
BD075EZ
BD100EZ
BD125EZ
BD150EZ
BD200EZ
BD250EZ
BD300EZ
BD400EZ
---
---
---
RD050EZ
RD075EZ
RD100EZ
RD125EZ
RD150EZ
RD200EZ
---
RD300EZ
RD400EZ
---
RD600EZ
---
1
Dixon and Boss-Lock cam and groove couplings
do not interchange in the 8" size.
The 8" Dixon design has 4 cam arms.
female coupler x female NPT
aluminum
Size
¾" x ½" ¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"

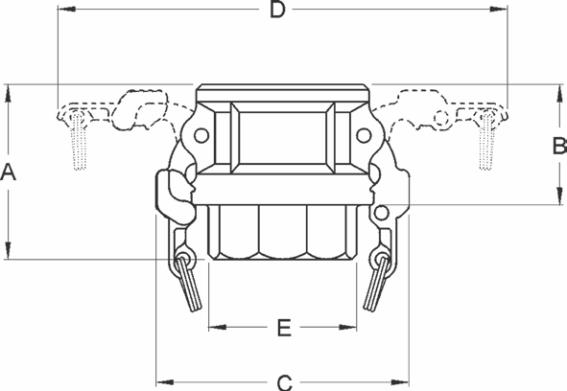

A overall length
---
2-7/32 2-17/32 3-3/32 2-31/32
3¼
3-11/16 3-7/8
3-13/16 3-15/16 4-5/8
4½
B coupler length
---
1-13/32 1-17/32 1-29/32 1-31/32 2-7/32
2¼
2-5/16 2-5/16 2-5/16 2-5/8
2-13/16
C distance across closed cam arms ---
3-3/32
3¼
3-29/32 4-7/32 4-19/32 5-3/32 5-23/32 6-27/32 7-7/8
10
12-1/32
D distance across open cam arms
---
6-7/32 6-11/32 7-15/32 7-25/32 8-5/32 8-21/32 9-29/32
11 12-1/16 16-25/32 18-25/32
E distance across flats
---
1-3/8
1-5/8
2
2¼
2-5/8
3-5/16 3-7/8
4-7/8
6 *
8-5/32
11-5/8
3576T6 aluminum, brass and iron dimensions
Size
¾" x ½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
A overall length
2
2-1/8
2½
3-3/32 2-27/32 3-3/16
---
3-19/32
4¾
---
4-1/16
---
B adapter length
1-5/16 1-9/32 1-9/16 1-29/32 1-29/32 2-3/16
---
2-9/32 2-11/32
---
2-19/32
---
C distance across closed cam arms 3-3/32 3-3/32
3¼
3-29/32 4-7/32 4-19/32
---
5-23/32 6-27/32
---
10
---
D distance across open cam arms 6-7/32 6-7/32 6-11/32 7-15/32 7-25/32 8-5/32
---
9-29/32
11
---
16-25/32
---
E distance across flats
1-3/16 1-3/8
1-5/8
2
2-3/16 2-11/16
---
3¾
4-7/8
---
7-19/32
---
316 stainless steel dimensions
* distance across lugs
