Couplers
Boss-Lock Type D Couplers
Size
356T6
Aluminum
Part #
Brass
Part #
Plated Iron
Part #
316 SS
Part #
¾" x½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
AD050
AD075
AD100
AD125
AD150
AD200
AD250
AD300
AD400
AD500
AD600
AD800
1
BD050
BD075
BD100
BD125
BD150
BD200
BD250
BD300
BD400
---
BD600
---
---
ID075
ID100
---
ID150
ID200
---
ID300
ID400
---
ID600
---
RD050BL
RD075BL
RD100BL
RD125BL
RD150BL
RD200BL
---
RD300BL
RD400BL
---
---
---
1
Dixon and Boss-Lock cam and groove couplings
do not interchange in the 8" size.
The 8" Dixon design has 4 cam arms.
female coupler x female NPT
aluminum
Size
¾" x ½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"

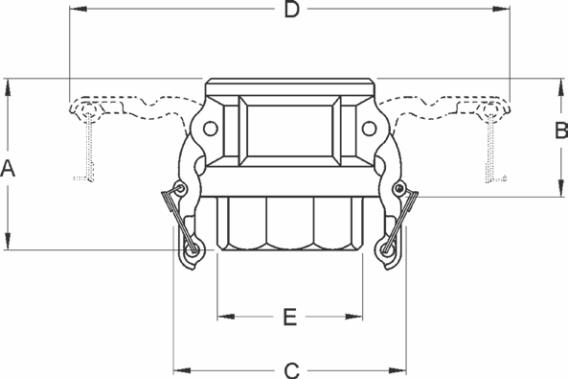

A overall length
2
2-7/32 2-17/32 3-3/32 2-31/32
3¼
3-11/16 3-7/8
3-13/16 3-15/16 4-5/8
4½
B coupler length
1-5/16 1-13/32 1-17/32 1-29/32 1-31/32 2-7/32
2¼
2-5/16 2-5/16 2-5/16 2-5/8
2-13/16
C distance across safety lugs
2-25/32 2-25/32 2-29/32 3-5/8
3-29/32 4-5/16 4-13/16 5-9/16 6-11/16 7-25/32 9-5/8
11-5/8
D distance across open cam arms 5-13/32 5-13/32 5-9/16 7-15/32 7-25/32 8-5/32 8-21/32 9-29/32
11
12-1/32 16-5/32 18-5/32
E distance across flats
1-3/16 1-3/8
1-5/8
2
2¼
2-5/8
3-5/16 3-7/8
4-7/8
6 *
8-5/32 11-5/8
3576T6 aluminum, brass and iron dimensions
Size
¾" x ½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
A overall length
2
2-1/8
2½
3-3/32 2-27/32 3-3/16
---
3-19/32
4¾
---
---
---
B adapter length
1-5/16 1-9/32 1-9/16 1-29/32 1-29/32 2-3/16
---
2-9/32 2-11/32
---
---
---
C distance across safety lugs
2-25/32 2-25/32 2-29/32 3-5/8
3-29/32 4-5/16
---
5-9/16 6-11/16
---
---
---
D distance across open cam arms 5-13/32 5-13/32 5-9/16 7-15/32 7-25/32 8-5/32
---
9-29/32
11
---
---
---
E distance across flats
1-3/16 1-3/8
1-5/8
2
2-3/16 2-11/16
---
3¾
4-7/8
---
---
---
316 stainless steel dimensions
* distance across lugs
