16
Dixon
877.963.4966
♦
dixonvalve.com
Couplers
Dixon Type B Couplers
Size
356T6
Aluminum
Part #
Aluminum
Hard Coat
Part #
Brass
Part #
Unplated Iron
Part #
316 SS
Part #
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
50-B-AL
75-B-AL
100-B-AL
125-B-AL
2
150-B-AL
200-B-AL
250-B-AL
2
300-B-AL
400-B-AL
500-B-AL
600-B-AL
800-B-AL
1, 3
---
---
---
---
150-B-ALH
200-B-ALH
---
300-B-ALH
400-B-ALH
---
600-B-ALH
---
50-B-BR
75-B-BR
100-B-BR
---
150-B-BR
200-B-BR
---
300-B-BR
400-B-BR
---
---
---
---
---
---
---
150-B-MI
200-B-MI
---
300-B-MI
400-B-MI
---
---
---
50-B-SS
75-B-SS
100-B-SS
---
150-B-SS
200-B-SS
250-B-SS
300-B-SS
400-B-SS
---
600-B-SS
---
1
Dixon and Boss-Lock cam and groove couplings
do not interchange in the 8" size
.
The 8" Dixon design has 4 cam arms.
2
Parts are manufactured in Canada.
3
Parts are produced as a welded fabrication.
female coupler x male NPT
aluminum
Size
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"

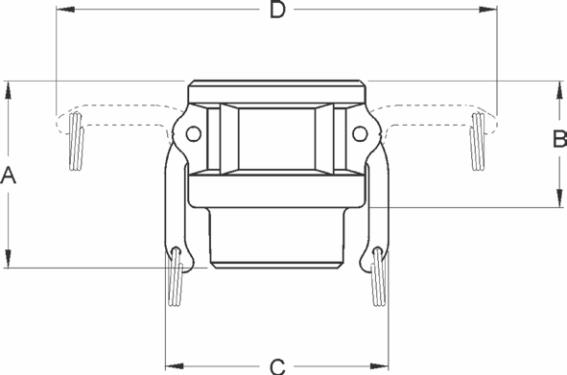

A overall length
2
2-1/8
2-17/32 3-1/32 2-13/16
3¼
3-9/16 3-15/16 4-1/32 4-3/16 4-7/16
8¼
B coupler length
1-11/32
1¼
1-5/8
1-15/16 1-29/32 2-7/32 2-5/32 2-5/16 2-11/32 2-5/16 2-5/8
3-13/16
C distance across closed cam arms 1-17/32 2-1/8 2-7/16 3-3/8
3-9/16 3-15/16 4-5/8
5-15/32 6-9/16 7-9/16 10-3/32 12-1/32
D distance across open cam arms
2-5/8
4-5/16 5-3/16 7-7/16 7-5/8
8-1/32 8-9/16 10-3/32 11-3/16 12-3/16 16¼
19-31/32
3576T6 aluminum, brass and iron dimensions
Size
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
A overall length
2-1/32 2-1/8
2-9/16 2-27/32 2-31/32 3-9/32 3-7/16 3-19/32
4
---
4-17/32
---
B adapter length
1-7/32
1¼
1-9/16 1-29/32 1-29/32 2-7/32
2¼
2-3/8
2-9/32
---
2-19/32
---
C distance across closed cam arms 1-17/32 2-1/8
2-7/16
3¼
3-9/16 3-15/16 4-7/16 5-15/32 5-15/32
---
10-3/32
---
D distance across open cam arms 2-5/8 4-5/16 5-3/16 7-5/32 7-7/16 7-13/16 8-11/32 9-15/16 11-1/32
---
16¼
---
316 stainless steel dimensions
