Vapor Recovery Drop Elbows
VR6200 Series Vapor Elbows

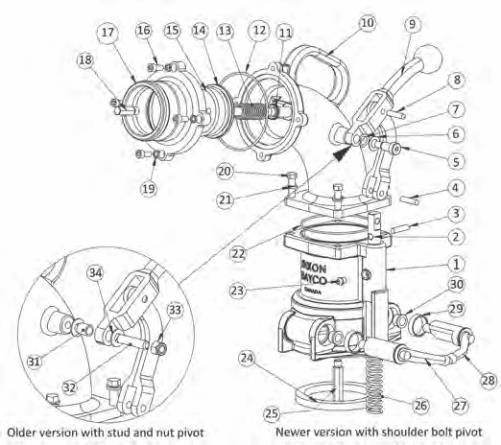

Bill Of Materials
Repair Kits
Features:
• for use in two point vapor recovery system
• one-piece bronze locking arms housed in polymer bushings
• advanced design side lever locking system
• Buna seals and stainless steel hardware
• bolt on 3" male outlet included (VR6000-6) which can be
rotated for extended life
•lubrication fitting on locking stem
•see 6400 co-axial elbow for single point vapor recovery on
page 641
Description Aluminum
Part # Price/E
3' male adapter with probe,
without poppet valve VR6200NP $711.45
3" male adapter outlet with
probe and poppet valve VR6200 810.05
Item
# Description Part # Price/E Qty
1 bottom body use kit VR6030 --- 1
2 stem 6200-7 $71.55 1
3 stem stop pin PIN5/16X1¼-P POR 1
4 stem link pin PIN5/16X1¼-P POR 1
5 1 shoulder bolt pivot use kit 6200SBK 1 --- 1
6 1 SS flat washer use kit 6200SBK 1 --- 1
7 1 wave washer use kit 6200SBK 1 --- 1
8 handle pin PIN 5/16X1¼-P POR 1
9 handle and linkage use kit 6200-15ASSM --- 1
10 top elbow body VR6000-1 198.25 1
11 poppet bushing VR6000-3 12.70 1
12 outlet O-ring only 110319 2.70 1
13 poppet spring L1110-L2287 18.30 1
14 Viton® poppet seal O-RING-AS-334 11.50 1
15 poppet valve VR6000-4 59.20 1
16 outlet adapter bolt use kit 6000NPHK --- 4
17 outlet adapter with
outlet O-ring
VR6000-6 61.50 1
18 poppet valve stand off VR6000-5 13.25 1
19 lock washer use kit 6000NPHK --- 4
20 bolt use kit 6000EHK --- 4
21 lock washer use kit 6000EHK --- 4
22 body O-ring AS156 2.70 1
23 grease nipple NIPPLE/1 6.65 1
24 main seal gasket 6000-9 8.15 1
25 probe VR6000-7 9.75 1
26 stem spring 112012 5.90 1
27 left arm VR6000-9 74.90 1
28 right arm VR6000-8 74.90 1
29 large bushing use kit 6200BK --- 2
30 small bushing use kit 6200BK --- 2
31 2 pivot bushing use kit 6200SHK 2 --- 1
32 2 pivot stud use kit 6200SHK 2 --- 1
33 2 pivot lock nut use kit 6200SHK 2 --- 1
34 2 nylon washer use kit 6200SHK 2 --- 2
Part # Description Includes Price/E
VR6230 complete replacement
bottom body
1,2,3,22,23,24,25,
26,27,28,29,30 $447.55
6200SBK 1
replacement shoulder bolt
pivot, wave washer and
flat washer
5, 6, 7 2.15
6200-15ASSM replacement handle,
linkage and linkage pin 8, 9 54.65
6000NPHK replacement adapter (4)
bolts and lock washers 16, 19 6.00
6000EHK replacement body bolts
and lock washers 20, 21 8.80
6200BK replacement (2) large and
small arm bushing 29, 30 42.80
6200SHK 2
replacement stud pivot,
nylon washer, bushing
and nut
31, 32, 33, 34 15.95
1 items 5 - 7 for shoulder bolt pivot version only
2 items 12 - 15 for stud and nut pivot version only
