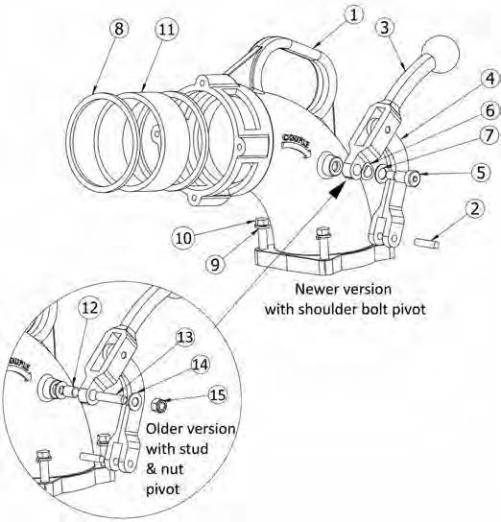

Bottom Unit, for Side Lever Elbows
Fits 6200, 6400 and 6500 Standard and Tall Elbows
Top Side Lever Elbow
Fits 6200 Elbow Only
•For replacement parts for othe style elbows, contact Dixon.
Bill Of Materials
1 items 5 - 7 for shoulder bolt pivot version only
2 items 12 - 15 for stud and nut pivot version only
Item
# Description Part # Price/E Qty
1 body 6200-1 $188.25 1
2 pin PIN5/16x11/4P 3.00 2
3 handle use kit 6200-15ASSM --- 1
4 handle linkage use kit 6200-15ASSM --- 1
5 1 shoulder bolt use kit 6200SBK 1 --- 1
6 1 wave washer use kit 6200SBK 1 --- 1
7 1 SS flat washer use kit 6200SBK 1 --- 1
8A Baylast™ gasket 4433 9.75 2
8B Viton® gasket (opt.) 4426 12.00 2
9 lock washer use kit 6000EHK --- 4
10 bolt use kit 6000EHK --- 4
11 sight glass use kit 6200SGK --- 1
12 2 bushing use kit 6200SHK 2 --- 1
13 2 stud use kit 6200SHK 2 --- 1
14 2 nylon washer use kit 6200SHK 2 --- 2
15 2 nut use kit 6200SHK 2 --- 1
Repair Kits
Part # Description Includes Price/E
6200SGK replacement sight glass
andBaylast™ seals 8, 11 $52.45
6000EHK replacement bolts and lock
washers 9, 10 8.80
6200-15ASSM replacement handle, linkage
and pin 2, 3, 4 56.30
6200SHK 2 replacement stud pivot, nylon
washers, bushing and nut 5, 6, 7 16.45
6200SBK 2 replacement stud pivot, nylon
washers, bushing and nut
12, 13,
14, 15 5.15
Bill Of Materials
Item # Description Part # Price/E Qty
1 body use kit 6230 --- 1
2 small bushing use kit 6200BK --- 2
3 large bushing use kit 6200BK --- 2
4A handle stem (stand) 6200-7 $73.70 1
4B handle stem (tall) 6200-7X 91.65 1
5 main gasket 6000-9 8.15 1
6 spring 112012 5.90 1
7 O-ring AS156 2.70 1
8 grease nipple NIPPLE/1 6.85 1
9 right arm use kit 6200ARK --- 1
10 left arm use kit 6200ARK --- 1
11 pin PIN5/16x11/4P 3.00 1
Repair Kits
Part # Description Includes Price/E
6230 complete standard
replacement bottom unit all $429.95
6230X complete tall
replacement bottom unit all 504.90
6200ARK
replacement left and
right arms, main gasket,
O-rings, small and large
bushings
2, 3, 5, 7
9, 10 141.60
6200BK replacement small and
large bushings 2, 3 42.80
