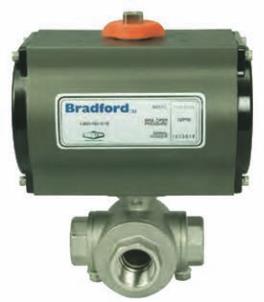

Pneumatically Actuated 3-Way Stainless Ball Valves - 'T / L' Port
Spring Return (normally closed)
Double Acting
A wide variety of switches, solenoids, positioners, etc., are available.
Contact Dixon Sanitary at 800.789.1718 or visit bradfordfittings.com for details.
* T = t-style
* L = l-style
All dimensions are given in inches, unless noted. Dimensions are approximate. Engineering
dimensions are available upon request. Specifications are subject to change without notice.
Dimensions are approximate. Engineering dimensions are available upon
request. Specifications are subject to change without notice.
D B
C E
A
D B
A
C E
Features:
3-Way Stainless Ball Valve
• full port
•female NPT ends
•blow-out proof stem
•live-loaded stem packing
•ISO 5211 mounting pad
•100% air tested under water at80 PSI
•working pressure: ¼" to 1":1000 PSI;
1¼" to 2":800 PSI
•temperature range:-20°F to 450°F
Rack and Pinion Actuator
•hard anodized aluminum body
•nickel plated anti-blowout pinion
•Buna-N O-rings
•NAMUR mounting
•bi-directional stops for ±5º travel adjustment
•80 PSI plant air required
•visual position indication
•maximum operating pressure:120 PSI
•operating temperature range:-40ºF to 200ºF
•tested to one million cycles
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example: Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other
viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators
may be required. Please consult the factory when dealing with these types of applications.
Size A B C D E 316 Stainless Steel
Part # Price/E
1/4" 5.35 3.20 2.83 7.10 1.41 BV3IG*F-0251BBC $852.00
3/8" 5.35 3.20 2.83 7.10 1.41 BV3IG*F-0381BBC 852.00
1/2" 5.55 3.20 3.26 7.10 1.63 BV3IG*F-0501BBC 852.00
3/4" 6.30 3.74 3.89 7.45 1.94 BV3IG*F-0751BBC 1039.40
1" 6.83 3.74 4.40 7.45 2.20 BV3IG*F-1001BBC 1182.65
1¼" 7.13 3.74 4.92 7.45 2.46 BV3IG*F-1251BBC 1612.00
1½" 8.43 4.69 5.86 9.10 2.93 BV3IG*F-1501BBC 1918.55
2" 9.97 5.53 6.85 12.99 3.42 BV3IG*F-2001BBC 3011.55
Size A B C D E 316 Stainless Steel
Part # Price/E
1/4" 5.35 3.20 2.83 7.10 1.41 BV3IG*F-0251BCC $753.10
3/8" 5.35 3.20 2.83 7.10 1.41 BV3IG*F-0381BCC 753.10
1/2" 5.55 3.20 3.26 7.10 1.63 BV3IG*F-0501BCC 753.10
3/4" 6.30 3.74 3.89 7.45 1.94 BV3IG*F-0751BCC 855.00
1" 6.83 3.74 4.40 7.45 2.20 BV3IG*F-1001BCC 1059.85
1¼" 7.13 3.74 4.92 7.45 2.46 BV3IG*F-1251BCC 1479.00
1½" 8.43 4.69 5.86 9.10 2.93 BV3IG*F-1501BCC 1785.60
2" 9.97 5.53 6.85 12.99 3.42 BV3IG*F-2001BCC 2580.75
See page 595 for flow path options.
A flow path needs to be selected at time
of order. If no flow path is selected, the
option number labeled as default will be
shipped.
Customer verification is critical. If flow
path needs to be changed after being
shipped, labor and shipping charges will
apply.
For spring return actuators: must not fail
position.
