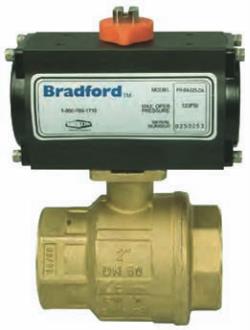

Pneumatically Actuated Brass Ball Valves
Spring Return (normally closed)
Double Acting
Features:
2-Piece Brass Ball Valve
•brass ball
•FKM elastomers
•blow-out proof brass stem
•PTFE seats with double O-ring stem packing
•ISO 5211 mounting pad
•pressure rating:600 PSI WOG -150 PSI WSP
•maximum temperature:366°F
Rack and Pinion Actuator
•hard anodized aluminum body
•nickel plated anti-blowout pinion
•Buna-N O-rings
•NAMUR mounting
•bi-directional stops for ±5º travel adjustment
•80 PSI plant air required
•visual position indication
•maximum operating pressure:120 PSI
•operating temperature range:-40ºF to 200ºF
•tested to one million cycles
A wide variety of switches, solenoids, positioners, etc., are available.
Contact Dixon Sanitary at 800.789.1718 or visit bradfordfittings.com for details.
C
D
A
B
C
D
A
B
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example: Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other
viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators
may be required. Please consult the factory when dealing with these types of applications.
All dimensions are given in inches, unless noted. Dimensions are
approximate. Engineering dimensions are available upon request.
Specifications are subject to change without notice.
Size A B C D Brass
Part # Price/E
1/4" 4.80 2.80 2.64 5.49 BV2BV-02511-BBC $524.15
3/8" 4.80 2.80 2.64 5.49 BV2BV-03811-BBC 510.70
1/2" 4.80 2.80 2.64 5.49 BV2BV-05011-BBC 533.65
3/4" 4.88 2.80 3.00 5.49 BV2BV-07511-BBC 518.25
1" 5.31 2.80 3.35 5.49 BV2BV-10011-BBC 543.00
1¼" 5.45 2.80 3.66 5.49 BV2BV-12511-BBC 695.30
1½" 6.04 2.80 4.13 5.49 BV2BV-15011-BBC 741.50
2" 6.40 2.80 4.80 5.49 BV2BV-20011-BBC 991.30
2½" 8.13 3.74 6.10 8.09 BV2BV-25011-BBC 1293.00
3" 8.50 3.74 6.89 8.09 BV2BV-30011-BBC 1855.20
4" 10.14 4.69 8.03 9.84 BV2BV-40011-BBC 2250.30
Dimensions are approximate. Engineering dimensions are available
upon request. Specifications are subject to change without notice.
Size A B C D Brass
Part # Price/E
1/4" 3.84 1.77 2.64 4.33 BV2BV-02511-BCC $375.80
3/8" 3.84 1.77 2.64 4.33 BV2BV-03811-BCC 362.35
1/2" 3.84 1.77 2.64 4.33 BV2BV-05011-BCC 320.20
3/4" 3.92 1.77 3.00 4.33 BV2BV-07511-BCC 419.35
1" 4.35 1.77 3.35 4.33 BV2BV-10011-BCC 444.10
1¼" 4.49 1.77 3.66 4.33 BV2BV-12511-BCC 572.50
1½" 6.42 3.20 4.13 5.68 BV2BV-15011-BCC 618.70
2" 6.78 3.20 4.80 5.68 BV2BV-20011-BCC 698.30
2½" 8.13 3.74 6.10 5.87 BV2BV-25011-BCC 1150.10
3" 8.50 3.74 6.89 5.87 BV2BV-30011-BCC 1424.45
4" 10.14 4.69 8.03 7.20 BV2BV-40011-BCC 1819.55
