Valves
P
589 DPL413 877.963.4966 • dixonvalve.com

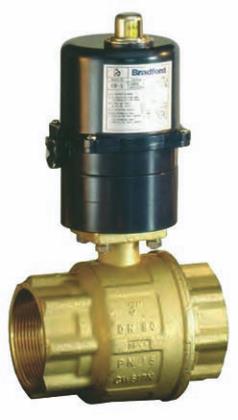

Electrically Actuated Brass Ball Valves
Dimensions are approximate.
Engineering dimensions are available upon request. Specifications are subject to change without notice.
Features:
2-Piece Brass Ball Valve
•brass ball
•FKM elastomers
•blow-out proof brass stem
•PTFE seats with double O-ring stem packing
•ISO 5211 mounting pad
•pressure rating:600 PSI WOG -150 PSI WSP
•maximum temperature:366°F
Electric Actuator
•lightweight powder coated aluminum alloy housing
•NEMA 4/4X waterproof and dustproof
•extended duty cycle induction motor
•high alloy steel gear train
•H-insulation class
•visual position indication
•space heater is standard
•manual override standard: ½" - 1½"
•working temperature:-41°F to 140°F
•ISO 9001, CS, CE and CSA-C US Certified
•RoHS compliant
A wide variety of options are available: modulating, extra switches, transmitters, potentiometer, etc.
Contact Dixon Sanitary at 800.789.1718 or visit bradfordfittings.com for details.
B
D
A
C
1/2" - 1-1/4"
BRACKET & COUPLER
INCLUDED
D
A
C
B
1-1/2" - 2" D C
A
B
3"
½" - ¾"
bracket & coupler
included
1½" - 3" 1" - 1¼"
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example: Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other
viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators
may be required. Please consult the factory when dealing with these types of applications.
Size A B C D Override Brass Part #
110VAC
Voltage
-EA
24VDC
Voltage
-EG
12VDC
Voltage
-ET
220VAC
Voltage
-EK
24VAC
Voltage
-ES
½" 8.8 4.5 3.1 2.6 standard BV2BV-05011 $865.80 $865.80 $865.80 $865.80 $973.05
¾" 9.2 4.5 3.1 3.0 standard BV2BV-07511 877.40 877.35 877.35 877.35 984.60
1" 9.4 4.5 3.1 3.4 standard BV2BV-10011 902.10 925.00 925.00 902.10 1206.85
1¼" 9.5 4.5 3.1 3.7 standard BV2BV-12511 976.15 976.20 976.20 976.20 1083.40
1½" 8.7 4.5 3.1 4.1 N/A BV2BV-15011 1322.85 1347.15 1022.40 1758.30 1452.40
2" 9.0 4.5 3.1 4.8 N/A BV2BV-20011 1379.10 1452.70 1452.70 1860.10 1531.25
3" 11.8 6.1 5.4 6.9 N/A BV2BV-30011 2508.35 3255.80 3556.70 2463.80 2771.75
