Valves
DPL413
P
877.963.4966 • dixonvalve.com
588

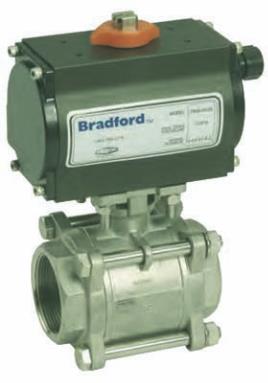

Pneumatically Actuated 3-Piece Stainless Ball Valves
Spring Return (normally closed)
Double Acting
Features:
3-Piece Stainless Ball Valve
•
15% glass reinforced RTFE seats
•
blow-out proof stainless steel stem
•
live-loaded stem packing
•
ISO 5211 mounting pad
•
swing out in-line easy maintenance
•
½" - 2" rated to
1000 PSI
WOG; 3" rated to
800 PSI
WOG
•
temperature range:
-40°F
to
400°F
Rack and Pinion Actuator
•
hard anodized aluminum body
•
nickel plated anti-blowout pinion
•
Buna-N O-rings
•
NAMUR mounting
•
bi-directional stops for ±5º travel adjustment
•
80 PSI plant air required
•
visual position indication
•
maximum operating pressure:
120 PSI
•
operating temperature range:
-40ºF
to
200ºF
•
tested to one million cycles
A wide variety of switches, solenoids, positioners, etc., are available.
Contact Dixon Sanitary at 800.789.1718 or visit bradfordfittings.com for details.
B1
C
A
F to F
B
C
A
F to F
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example:
Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other
viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators
may be required. Please consult the factory when dealing with these types of applications.
Dimensions are approximate. Engineering dimensions are
available upon request. Specifications are subject to change
without notice.
1
bracket and coupler required for ½" and ¾" spring return
actuator
Size
F to F A
B
C
316 Stainless Steel
Part #
Price/E
½"
2.6 7.0 7.7
3.2
BV2IG-05011-BBC
1
$587.30
¾"
3.0
7.2 7.7
3.2
BV2IG-07511-BBC
1
592.60
1"
3.4 6.1 7.7
3.2
BV2IG-10011-BBC
628.50
1¼"
4.0 6.3 7.7
3.2
BV2IG-12511-BBC
686.35
1½"
4.7 7.7 8.1 3.7
BV2IG-15011-BBC
850.70
2" 5.2
8.8 8.1 3.7
BV2IG-20011-BBC
1156.75
3"
7.2
10.2
9.8 4.7
BV2IG-30011-BBC
2269.60
4" 8.9 12.4
10.9 5.5
BV2IG-40011-BBC
4259.25
Dimensions are approximate. Engineering dimensions are
available upon request. Specifications are subject to change
without notice.
Size
F to F A
B1
C
316 Stainless Steel
Part #
Price/E
½"
2.6
5.0
4.7 2.4
BV2IG-05011-BCC
$373.85
¾"
3.0 5.2
4.7 2.4
BV2IG-07511-BCC
401.00
1"
3.4 6.1 5.7
3.2
BV2IG-10011-BCC
529.65
1¼"
4.0 6.3 5.7
3.2
BV2IG-12511-BCC
587.45
1½"
4.7 7.7
5.9
3.7
BV2IG-15011-BCC
727.85
2" 5.2
8.0
5.9
3.7
BV2IG-20011-BCC
863.75
3"
7.2
10.2
7.2 4.7
BV2IG-30011-BCC
1838.85
4" 8.9 13.8 16.3 7.2
BV2IG-40011-BCC
3069.80
