Valves
DPL413
P
877.963.4966 • dixonvalve.com 580
3-Way Diverting Ball Valves
3-Way Diversion Ball Valves

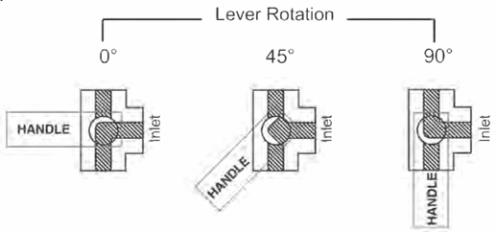

T Flow Pattern
L Flow Pattern
Note: ¼ turn handle can be adjusted to any orientation.
Notches on the valve stem reflect the three openings on
the ball.
Lever Assembly position 1 position 2

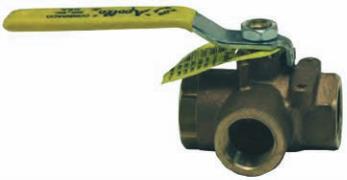

Features:
• can be used with gasoline
and diesel fuel
• rated to400 PSI WOG
• bronze body
• blow-out proof stem
• chromium-plated ball
•RPTFE seats and stuffing
box ring
•stainless steel handle and
nut with vinyl sleeve
•adjustable packing gland
•½" full port; ¾" and 1"
standard port
1 carbon steel handle and nut with vinyl sleeve
female NPT x female NPT x female NPT
Size Port Type Bronze
Part # Price/E
½" full BBV50TW 1 $68.75
¾" standard BBV75TW 95.00
1" standard BBV100TW 126.00
Features:
• rated to800 PSI WOG
•stainless steel body and
ball
•blow-out proof stem
•RPTFE seats and stuffing
box ring
•stainless steel handle and
nut with vinyl sleeve
•adjustable packing gland
•½" full port; ¾" and 1"
standard port
•meets NACE MR-01-75
female NPT x female NPT x female NPT
Size Port Type Stainless Steel
Part # Price/E
½" full SSBV50TW $301.90
¾" standard SSBV75TW 390.00
1" standard SSBV100TW 503.00
female NPT x female NPT x female NPT
Features:
•rated to400 PSI WOG;100
PSIsaturated steam
•brass body
•blow-out proof stem
•chrome plated brass ball
•PTFE seats, seals, and
thrust washer
•adjustable stem packing
•standard port
• maximum temperature:
344°F
Size Port Type Brass
Part # Price/E
½" standard BBV50DTW $108.50
¾" standard BBV75DTW 119.80
1" standard BBV100DTW 183.65
1¼" standard BBV125DTW 269.10
1½" standard BBV150DTW 409.35
2" standard BBV200DTW 668.55
