Valves
P
579 DPL413 877.963.4966 • dixonvalve.com
"Deadman" Spring Return Handle Ball Valves
Features:
•rated to600 PSI WOG;150 PSIsaturated steam
•vacuum service to 29 inches Hg
•stainless steel lever
•chromium plated ball
•RTFE seats and stuffing box ring
•blow-out proof stem design
•adjustable packing gland
•½" full port; ¾" - 2" standard port
•spring return closes valve when not held open
•operating torque approximately three times standard valve
torque

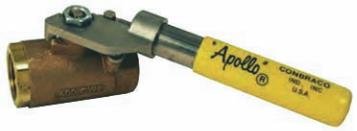

Bronze

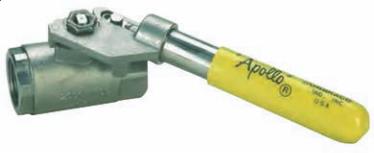

316 Stainless Steel
Features:
•rated to2000 PSI WOG ½" to 1";1500 PSI WOG 1¼" to 2"
• 150 PSIsaturated steam, all sizes
•vacuum service to 29 inches Hg, all sizes
•PTFE seals
•blow-out proof stem design
•adjustable packing gland
•½" full port; ¾" - 2" standard port
•spring return closes valve when not held open
•operating torque approximately three times standard valve
torque
250 Lb. Steam Ball Valves
Features:
•recommended for use with fluids with widely varying
temperatures and/or thermal expansion rates
•rated to600 PSI;250 PSIsaturated steam
•vacuum service to 29 inches Hg
•threaded bronze valve
•316 stainless steel ball and stem
•blow-out proof stem design
•multi-fill RPTFE seats
•multi-fill stuffing box ring
•high temperature MTFE stem packing
•adjustable packing gland
•½" full port; ¾" - 2" standard port
•maximum temperature rating406°F
female NPT x female NPT
Size Port Type Bronze
Part # Price/E
½" full BBV50ST $74.40
¾" standard BBV75ST 120.00
1" standard BBV100ST 141.00
2" standard BBV200ST 391.00
female NPT x female NPT
Size Port Type Bronze
Part # Price/E
½" full BBV50SR $249.50
¾" standard BBV75SR 279.50
1" standard BBV100SR 298.00
1½" standard BBV150SR 459.00
2" standard BBV200SR 540.00
female NPT x female NPT
Size Port Type 316 Stainless Steel
Part # Price/E
½" full SSBV50SR $280.20
¾" standard SSBV75SR 362.75
1" standard SSBV100SR 407.70
1¼" standard SSBV125SR 663.75
1½" standard SSBV150SR 715.00
2" standard SSBV200SR 888.75
