Valves
DPL413
P
877.963.4966 • dixonvalve.com 578

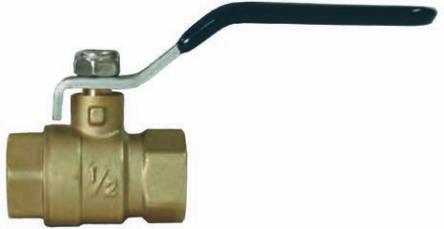

Imported Brass Ball Valves
female NPT x female NPT
female NPT x female NPT female NPT x female NPT
female NPT x female NPT
with locking handle
Features:
•for control of air, water, oil and gas in hose or pipe lines
for other services, please contact Dixon
•rated to600 PSI WOG;150 PSI Working Steam Pressure
•forged brass bodies
•blow-out proof stems
•PTFE seats, seals and thrust washers
•chrome-plated brass balls and plated steel handles
• full port
•maximum temperature366°F
•Underwriters Listed for ¼" through 4" full port valves
•NSF61 approved
Global Brass Ball Valves
Features:
• for water and air only
•¼" - 3/8" rated to365 PSI; ½" - 2" rated to 600 PSI
• body: forged brass
• maximum temperature248°F(120°C)
Features:
• for control of air, water, oil and gas in hose or pipe lines
for other services, please contact Dixon
• rated to600 PSI WOG;150 PSI Working Steam Pressure
• forged brass bodies
• blow-out proof stems
• PTFE seats, seals and thrust washers
• chrome-plated brass balls and plated steel handles
• standard port
• maximum temperature 366°F
Size Port Type Brass
Part # Price/E
1/4" full FBV25 $18.15
3/8" full FBV38 18.15
1/2" full FBV50 22.25
3/4" full FBV75 31.70
1" full FBV100 47.15
1¼" full FBV125 82.10
1½" full FBV150 121.45
2" full FBV200 172.20
Size Port Type Brass
Part # Price/E
2½" full FBV250 $379.55
3" full FBV300 543.20
4" full FBV400 897.60
Size Port Type Brass
Part # Price/E
½" full FBVL50 $34.30
¾" full FBVL75 45.00
1" full FBVL100 61.15
1¼" full FBVL125 101.65
1½" full FBVL150 143.25
2" full FBVL200 205.90
Size Port Type Brass
Part # Price/E
2½" full FBVL250 $441.90
3" full FBVL300 623.15
4" full FBVL400 1033.30
Size Port Type Brass
Part # Price/E
½" standard BV50 $17.20
¾" standard BV75 20.85
1" standard BV100 28.90
1¼" standard BV125 44.80
1½" standard BV150 59.95
2" standard BV200 88.75
female NPT x female NPT
Size Port Type Brass
Part # Price/E
¼" full FBVG25 $7.50
3/8" full FBVG38 7.50
½" full FBVG50 11.80
¾" full FBVG75 16.60
1" full FBVG100 27.25
1¼" full FBVG125 42.00
1½" full FBVG150 59.00
2" full FBVG200 90.00
