Valves
P
577 DPL413 877.963.4966 • dixonvalve.com
Domestic Brass Ball Valves
Locking Handle Brass Ball Valves
Features:
•for control of air, water, oil and gas in hose or pipe lines
for other services, please contact the factory
•rated to600 PSI WOG;150 PSIsaturated steam
•blow-out proof RPTFE stem
•chrome-plated brass ball
•Stainless steel sliding lock mechanism secures handle
in open or closed position; can be padlocked opened or
closed.
•plated steel handles and nuts with vinyl sleeves, full port and
standard port valves are both repairable
•¼" - ½" full port; ¾" - 2" standard port
Features:
•for control of air, water, oil and gas in hose or pipe lines
for other services, please contact the factory
•rated to600 PSI WOG;150 PSIsaturated steam
•brass valve bodies, balls and stems
•blow-out proof stems
•glass-filled reinforced PTFE seats and stuffing box ring;
stem seals and washers
•plated steel handles and nuts with vinyl sleeves, full port and
standard port valves are both repairable
•¼" - ½" full port; ¾" - 3" standard port
•meets WW-V 35C, Type II Composition
•ball valve handle replacements available, consult Dixon for
pricing
Domestic Full Port Ball Valves
sliding lock
mechanism
female NPT x female NPT
female NPT x female NPT
Size Port Type Brass
Part # Price/E
1/4" full BBV25 $34.00
3/8" full BBV38 34.00
1/2" full BBV50 34.00
3/4" standard BBV75 56.00
1" standard BBV100 70.50
1-1/4" standard BBV125 118.50
1-1/2" standard BBV150 146.75
2" standard BBV200 189.50
2½" standard BBV250 902.50
3" standard BBV300 1093.50
Size Port Type Brass
Part # Price/E
1/4" full BBLV25 $44.50
3/8" full BBLV38 44.50
1/2" full BBLV50 44.50
3/4" standard BBLV75 66.50
1" standard BBLV100 81.00
1-1/4" standard BBLV125 128.80
1-1/2" standard BBLV150 161.70
2" standard BBLV200 200.00

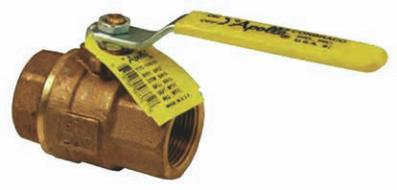

female NPT x female NPT
Features:
• machined solid chrome-plated ball
• multi-fill PTFE seats and seals
• adjustable packing
• blow-out proof stem design
• bronze castings
• full port
• vacuum service to 29 inches Hg
• rated to600 PSI WOG;150 PSI saturated steam
Size Port Type Bronze
Part # Price/E
3/4" full BBV75FP $53.10
1" full BBV100FP 67.00
1-1/4" full BBV125FP 156.75
1-1/2" full BBV150FP 207.75
2" full BBV200FP 358.00
