Butterfly Valves
Clamp End Butterfly Valve with Trigger Handle - [C]
Feature:
•
lockout / tagout handle
Size
316L Stainless Steel with
Silicone seats
316L Stainless Steel with
FKM seats
316L Stainless Steel with
EPDM seats
Part #
Price/E
Part #
Price/E
Part #
Price/E
½"
B5101S050CC-C
$325.05
B5101V050CC-C
$351.60
B5101E050CC-C
$319.10
¾"
B5101S075CC-C
325.05
B5101V075CC-C
351.60
B5101E075CC-C
319.10
1"
B5101S100CC-C
305.85
B5101V100CC-C
333.20
B5101E100CC-C
299.90
1½"
B5101S150CC-C
297.50
B5101V150CC-C
340.10
B5101E150CC-C
329.60
2"
B5101S200CC-C
360.30
B5101V200CC-C
421.15
B5101E200CC-C
349.95
2½"
B5101S250CC-C
450.20
B5101V250CC-C
576.45
B5101E250CC-C
427.25
3"
B5101S300CC-C
601.45
B5101V300CC-C
799.45
B5101E300CC-C
583.45
4"
B5101S400CC-C
926.65
B5101V400CC-C
1377.05
B5101E400CC-C
897.65
Size
Dimensions
Break Torque
(in. lbs.) silicone
Break Torque
(in. lbs.) FKM
Break Torque
(in. lbs.) EPDM
PSI @
68°F

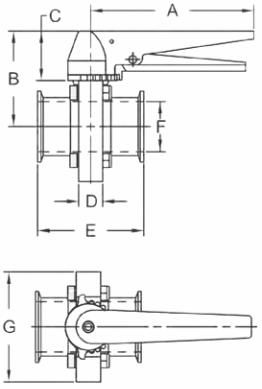

A B C D E F G
½"
6.6 3.0 1.7 0.9 3.5 .37 3.1
20
70
75
140
¾"
6.6 3.0 1.7 0.9 3.5 .62 3.1
20
70
75
140
1"
6.6 3.0 1.7 0.9 3.5 0.9 3.1
20
70
75
140
1½"
6.6 3.0 1.7 0.9 3.5 1.4 3.1
40
125
130
140
2"
6.6 3.5 1.7 0.9 3.8 1.9 3.9
55
175
165
140
2½"
6.6 3.7 1.7 0.9 3.8 2.4 4.6
70
220
210
110
3"
6.6 3.9 1.7 1.2 4.1 2.9 5.2
165
310
350
110
4"
6.6 4.8 1.7 1.2 4.8 3.8 6.7
350
450
540
85
Dixon Sanitary's commitment to excellence and continuous research and development for improving product quality may warrant periodic changes in design
and specification. We reserve the right to modify product design without prior notification and without incurring any liability to provide these modifications to
products previously purchased.
Repair kit contains:
(1) seat
(2) bushings
for valves located on pages 476-477
Valve Size
Black EPDM
Red Silicone
Brown FKM
Part #
Price/E
Part #
Price/E
Part #
Price/E
½" - 1"
B5101-RKE100
$28.15
B5101-RKS100
$36.05
B5101-RKV100
$77.85
1½"
B5101-RKE150
30.40
B5101-RKS150
41.80
B5101-RKV150
107.75
2"
B5101-RKE200
36.85
B5101-RKS200
45.90
B5101-RKV200
141.25
2½"
B5101-RKE250
41.35
B5101-RKS250
51.25
B5101-RKV250
264.60
3"
B5101-RKE300
66.50
B5101-RKS300
81.05
B5101-RKV300
465.65
4"
B5101-RKE400
101.20
B5101-RKS400
125.15
B5101-RKV400
855.45
6"
B5101-RKE600
160.80
B5101-RKS600
308.45
---
---
8"
B5101-RKE800
336.45
---
---
---
---
Repair Kit for Butterfly Valves
