Sanitary Fittings
DPL113
M
4
877.963.4966 • dixonvalve.com
478
Repair Kit for Clamp Butterfly Valves
Repair kit contains:
(1) seat
(2) bushings
Valve
Size
Black EPDM
Red Silicone
Brown FKM
Part #
Price/E
Part #
Price/E
Part #
Price/E
1"
B5102-RKE100
$23.80
B5102-RKS100
$30.20
B5102-RKV100
$101.80
1½"
B5102-RKE150
16.25
B5102-RKS150
23.45
B5102-RKV150
91.35
2"
B5102-RKE200
25.35
B5102-RKS200
32.25
B5102-RKV200
116.05
2½"
B5102-RKE250
32.65
B5102-RKS250
38.40
B5102-RKV250
140.75
3"
B5102-RKE300
74.60
B5102-RKS300
86.15
B5102-RKV300
208.05
4"
B5102-RKE400
99.75
B5102-RKS400
108.00
B5102-RKV400
273.95

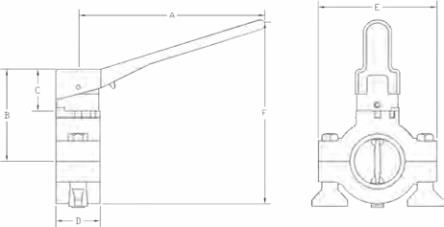

Clamp Butterfly Valves
Size
Dimensions
BreakTorque
(inch lbs.)
PSI @
68°F
A B C D E F
1"
1½"
2"
2½"
3"
4"
5.6
5.6
5.6
5.6
5.6
5.6
2.8
2.8
3
3.3
3.6
4.1
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
3.6
3.6
4.1
4.6
5.3
6.4
5.6
5.6
6.1
6.6
7.1
8.2
125
185
200
260
350
495
140
140
120
120
100
70
Features:
•
minimal line pressure 0.4 inches Hg vacuum @ 68°F
•
3 position reversible handle
•
can be modified for lockout/tagout
•
operating temperature
15°F
-
200°F
•
PTFE valve disc bushings decrease friction and increase
cycle life
•
the grooved clamp housing connects directly to the
corresponding sanitary clamp size
•
valve is only 1-3/8" wide on all sizes
•
valve uses only 3/4" of line space
•
the grooved clamp housing connects directly to any sanitary
clamp style fitting
•
Easy assembly requires a hex key for the handle and wing
nuts to secure and seal the housing onto lines.
•
actuation available: double acting, spring return and electric,
call the factory at 800.789.1718 for details
Butterfly Valves
Size
316L Stainless Steel with
Silicone seats
316L Stainless Steel with
FKM seats
316L Stainless Steel with
EPDM seats
Part #
Price/E
Part #
Price/E
Part #
Price/E
1"
B5102S100-A
$197.90
B5102V100-A
$244.55
B5102E100-A
$197.90
1½"
B5102S150-A
197.90
B5102V150-A
242.30
B5102E150-A
197.90
2"
B5102S200-A
240.80
B5102V200-A
295.90
B5102E200-A
240.80
2½"
B5102S250-A
310.90
B5102V250-A
379.50
B5102E250-A
310.90
3"
B5102S300-A
367.80
B5102V300-A
444.30
B5102E300-A
367.80
4"
B5102S400-A
537.60
B5102V400-A
644.95
B5102E400-A
537.60
Information supplied based on water media @ 68°F
Size Break Torque
(in-lbs.)
Assembly Torque
(in-lbs.)
Pressure Rating
(PSI)
Flow Coefficent
(C
V
)
Weight w/
standard
handle (lbs.)
1"
125
36
140
23
1.5
1½"
185
36
140
80
2
2"
200
21.6
120
230
2.5
2½"
260
21.6
120
264
3
3"
350
28.8
100
372
4
4"
495
43.2
70
800
6
