Clamp End Butterfly Valve with Pull Handle - [A]
Clamp End Butterfly Valves with Infinite Position Handle - [B]
Butterfly Valves
Features:
In addition to a variety of end and seat configurations this butterfly valve also has four handle options.
A. The pull style handle allows you to set the valve in four different positions simply by pulling and turning.
B. The infinite handle has incremental marks on the top which can be used when needing a throttling valve.
C. The stainless steel trigger handle offers twelve positions which make it easy to understand how to actuate the valve.
• 100% hydraulic tested / 100% inspected
• all wetted surfaces are sanitary finished to < 32Ra
• field serviceable (no special tools required)
• various end configurations available: weld, I-line, Q-line,
bevel seat and John Perry
• actuation available: double-acting, air-to-spring, electric, call
the factory at 800.789.1718 for details
• vacuum rating: 0.4 inches Hg at 68°F
• temperature range: 15°F to 200°F
• clamp style is standard
Size
316L Stainless Steel with
silicone seats
316L Stainless Steel with
FKM seats
316L Stainless Steel with
EPDM seats
Part # Price/E Part # Price/E Part # Price/E
½" B5101S050CC-B $325.05 B5101V050CC-B $351.60 B5101E050CC-B $319.10
¾" B5101S075CC-B 325.05 B5101V075CC-B 351.60 B5101E075CC-B 319.10
1" B5101S100CC-B 305.85 B5101V100CC-B 333.20 B5101E100CC-B 299.90
1½" B5101S150CC-B 297.50 B5101V150CC-B 340.10 B5101E150CC-B 289.95
2" B5101S200CC-B 360.30 B5101V200CC-B 421.15 B5101E200CC-B 349.95
2½" B5101S250CC-B 450.20 B5101V250CC-B 576.45 B5101E250CC-B 427.25
3" B5101S300CC-B 601.45 B5101V300CC-B 799.45 B5101E300CC-B 583.45
4" B5101S400CC-B 926.65 B5101V400CC-B 1377.05 B5101E400CC-B 897.65
Size
Dimensions Break Torque
(in. lbs.)
Silicone
Break Torque
(in. lbs.) FKM
Break Torque
(in. lbs.)
EPDM
PSI @

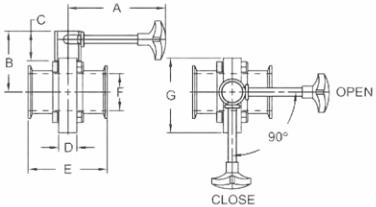

68°F A B C D E F G
½" 4.4 2.8 1.4 0.9 3.5 .37 3.1 20 70 75 140
¾" 4.4 2.8 1.4 0.9 3.5 .62 3.1 20 70 75 140
1" 4.4 2.8 1.4 0.9 3.5 0.9 3.1 20 70 75 140
1½" 4.4 2.8 1.4 0.9 3.5 1.4 3.1 40 125 130 140
2" 4.4 3.1 1.4 0.9 3.8 1.9 3.9 55 175 165 140
2½" 4.4 3.5 1.4 0.9 3.8 2.4 4.6 70 220 210 110
3" 6.2 3.8 1.3 1.2 4.1 2.9 5.2 165 310 350 110
4" 6.2 4.5 1.3 1.2 4.8 3.8 6.7 350 450 540 85
6" 11.5 5.5 1.3 1.2 5.5 5.8 8.5 700 n/a 1550 60
8" 18.0 6.9 1.6 1.2 4.9 7.8 11.2 n/a n/a 1650 60
Size
Dimensions Break Torque
(in. lbs.)
Silicone
Break Torque
(in. lbs.) FKM
Break Torque
(in. lbs.)
EPDM
PSI @
68°F A B C D E F G
½" 4.3 2.6 1.3 0.9 3.5 .37 3.1 20 70 75 140
¾" 4.3 2.6 1.3 0.9 3.5 .62 3.1 20 70 75 140
1" 4.3 2.6 1.3 0.9 3.5 0.9 3.1 20 70 75 140
1½" 4.3 2.6 1.3 0.9 3.5 1.4 3.1 40 125 130 140
2" 4.3 2.9 1.3 0.9 3.8 1.9 3.9 55 175 165 140
2½" 4.3 3.3 1.3 0.9 3.8 2.4 4.6 70 220 210 110
3" 6.4 3.6 1.3 1.2 4.1 2.9 5.2 165 310 350 110
4" 6.4 4.4 1.3 1.2 4.8 3.8 6.7 350 450 540 85
Size
316L Stainless Steel with
Silicone seats
316L Stainless Steel with
FKM seats
316L Stainless Steel with
EPDM seats
Part # Price/E Part # Price/E Part # Price/E
½" B5101S050CC-A $325.05 B5101V050CC-A $351.60 B5101E050CC-A $319.10
¾" B5101S075CC-A 325.05 B5101V075CC-A 351.60 B5101E075CC-A 319.10
1" B5101S100CC-A 313.15 B5101V100CC-A 333.20 B5101E100CC-A 299.90
1½" B5101S150CC-A 297.50 B5101V150CC-A 340.10 B5101E150CC-A 289.95
2" B5101S200CC-A 360.30 B5101V200CC-A 421.15 B5101E200CC-A 349.95
2½" B5101S250CC-A 450.20 B5101V250CC-A 576.45 B5101E250CC-A 427.25
3" B5101S300CC-A 601.45 B5101V300CC-A 799.45 B5101E300CC-A 583.45
4" 1 B5101S400CC-A 926.65 B5101V400CC-A 1377.05 B5101E400CC-A 897.65
6" B5101S600CC-A 2095.70 --- --- B5101E600CC-A 2073.45
8" --- --- --- --- B5101E800CC-A 6008.15
1 4" high pressure butterfly valve is available, call Dixon Sanitary for more information
