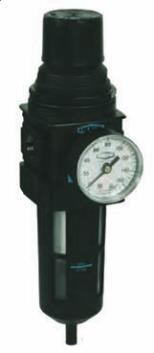

Wilkerson Standard Filter / Regulators
SCFM ratings at 150 PSIG inlet pressure.
Wilkerson EconOmist® Compact Lubricators
Features:
• 0-125 PSIG adjusting range
• 5 micron element
• 6 oz. bowl
• self-relieving standard
• spring-loaded diaphragm
• To increase regulated pressure, pull adjusting knob and turn
clockwise. To reduce pressure, turn knob counter clockwise.
To lock knob, push down.
• Two ¼" gauge ports located on the front and rear faces of
the body. These ports may be used as additional regulated
ports or for pressure gauges. Plug unused port(s).
• supplied with GC230 gauge
• maximum operating conditions:
transparent bowl: 150 PSIG (10.3 bar) and 32°F to 125°F
(0°C to 52°C)
metal bowl: 250 PSIG (17.2 bar) and 32°F to 150°F
(0°C to 65.5°C)
4.09 (104)
2.90 (74)
11.44 (291)
2.00 (51)
Bowl Removal
Clearance
with metal bowl
Designed so that all the oil flow observed in the sight dome is broken into a mist and delivered via the airflow to the application.
The oil in the bowl can be filled or replenished without interrupting airflow or bleeding pressure from the system. Once the oil-fill
cap is removed, the bowl is depressurized and isolated from line pressure, and the bowl itself can then be removed for faster
refill, if desired. The bowl can be filled right to the top.
Features:
• 5 oz. bowl
• full view sight dome
• fill under pressure design
• maximum operating conditions:
transparent bowl: 150 PSIG (10.3 bar) and 32°F to 125°F
(0°C to 52°C)
metal bowl: 200 PSIG (13.8 bar) and 32°F to 150°F
(0°C to 65.5°C)
transparent bowl with guard
See page 221 for filter/regulator accessories.
SCFM ratings at 100 PSIG inlet pressure.
See pages 218-220 for lubricator accessories. See page 136 for air tool lubricant.
Size SCFM
With Transparent Bowl and Guard With Metal Bowl with Sight Glass
Automatic Drain Manual Drain Automatic Drain Manual Drain
Part # Price/E Part # Price/E Part # Price/E Part # Price/E
3/8" 140 B28-03AG $247.75 B28-03MG $190.95 B28-03AGMB $252.30 B28-03MGMB $195.50
1/2" 165 B28-04AG 247.75 B28-04MG 190.95 B28-04AGMB 252.30 B28-04MGMB 195.50
3/4" 175 B28-06AG 247.75 B28-06MG 190.95 B28-06AGMB 252.30 B28-06MGMB 195.50
Size SCFM With Transparent Bowl With Metal Bowl
Part # Price/E Part # Price/E
1/4" 36.1 L16-02A $146.20 L16-02AMB $162.70
3/8" 58.5 L16-03A 146.20 L16-03AMB 162.70
1/2" 64.0 L16-04A 146.20 L16-04AMB 162.70
FRL's are designed for air service only, unless otherwise indicated.
