Air Fittings
120 DPL413 877.963.4966 • dixonvalve.com
E
ASME Air Receiver Manifold
40" 10-1/2"
23-1/4"
17" 12"
3/4" 1/2"
1/2"
2" 2"
1" 1" 1" 3
1 2
8
7 4, 5, 6 9, 10, 11
Three 1" holes located
180° of this side

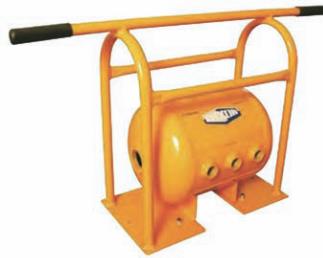

Dixon 1217AR-4AK air receiver manifold assembly with Air King outlet ports includes the following:
1217AR-4AK 1217AR-4FR
Part # /
Locations Description Price/E Price
1217AR-4 ASME compressed air receiver --- $1185.00
1217FRAME 1 protective frame --- 390.00
Location 1 1 HB2F6M ¾" male x ¼" female hex bushing $7.65 7.65
1 GL345 0-300 PSI gauge 18.95 18.95
Location 2 1 HB2F4M ½" male x ¼" female hex bushing 4.19 4.19
1 SV200 safety pop-off valve 35.75 35.75
Location 3 1 GM28 2" male spud 54.00 54.00
1 B27SC wing nut cap 80.65 80.65
Locations 6 HB1075G 1" male x ¾" female bushings 6.55 39.30
4, 5, 6, 9, 6 BCN75 ¾" brass hex nipples 7.47 44.82
10, 11 6 BBLV75 ball valves 66.50 399.00
6 SCVS6 safety shut-off valves 95.00 570.00
6 AM7 Air King universal couplings 8.40 50.40
4 SE45100 45° street elbow (1 each in locations 4, 6, 9 and 11 only) 9.20 36.80
Location 7 1 HB2075 2" male x ¾" female bushing 8.45 8.45
1 BCN75 ¾" brass hex nipples 7.47 7.47
1 BBLV75 ball valve 66.50 66.50
1 SCVS6 safety shut-off valve 95.00 95.00
1 AM7 Air King universal coupling 8.40 8.40
Location 8 1 HB2F4M ½" male x ¼" female hex bushing 4.19 4.19
1 D04 ¼" drain cock 4.90 4.90
Labor cost for assembly of complete unit --- 320.00
1217AR-4AK 7 gallon ASME compressed air receiver manifold complete assembly with Air King --- 3431.42
1217AR-4PHL 7 gallon ASME compressed air receiver manifold complete assembly with Dual Lock --- 3885.45
Tank and Frame only
1217AR-4FR 7 gallon ASME compressed air receiver with frame only --- $1575.00
Features:
• built to ASME Code, National Board registered
• 7 gallon capacity
• all openings are female NPT thread
• conforms to OSHA standards 1910.169 and 1926.306
• painted safety orange
• 200 PSI working pressure
