Air Fittings
121 DPL413 877.963.4966 • dixonvalve.com
E
Wilkerson Combination Unit with Protective Frame
ASME Air Receiver Manifold Assembly
with Air King Fittings and Watts Filter
Application:
• Designed to remove compressed air contaminants such as
water, compressor oil, dirt, pipe scale and water particles
from the air supply at the point of entry into the ASME air
receiver manifold.
Features:
• includes basic 1217AR-4AK ASME manifold assembly
• F602-16WJR 2" auto drain filter with 26 ounce metal bowl
and related plumbing installed on the inlet port of the ASME
air receiver manifold
• Air supply hose connects directly to GM28 2" male spud on
the filter air inlet.
• includes a B27SC wing nut cap with a chain
ASME air receiver manifold assembly
with air king fittings and Watts filter
Size Part # Price/E
2" inlet, ¾" outlets 1217AR-4AKWF $4712.85

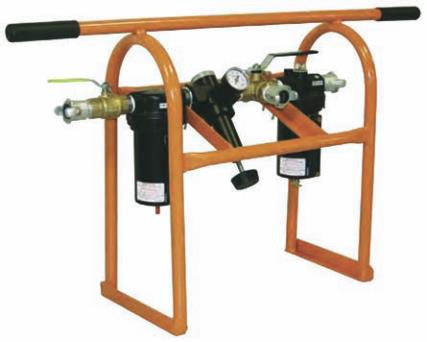

Features:
• C31-08AMB 1" FRL with metal bowls and auto drain filter
• FBV100 1" brass ball valve and AM12 air king on inlet port
• BBV100DTW 2-way ball valve installed between regulator
and lubricator provides option for non-lubricated air
• heavy duty frame protects air prep components
• operating conditions:
maximum pressure: 250 PSIG
temperature range: 40°F to 150°F
SCFM: 320
Application:
• Provides downstream air preparation with protective frame
FRL with protective frame
Size Part # Price/E
1" C31-08FRAME $1910.00
