www.BAND-IT-IDEX.com 31
M17598 Center Punch
Head

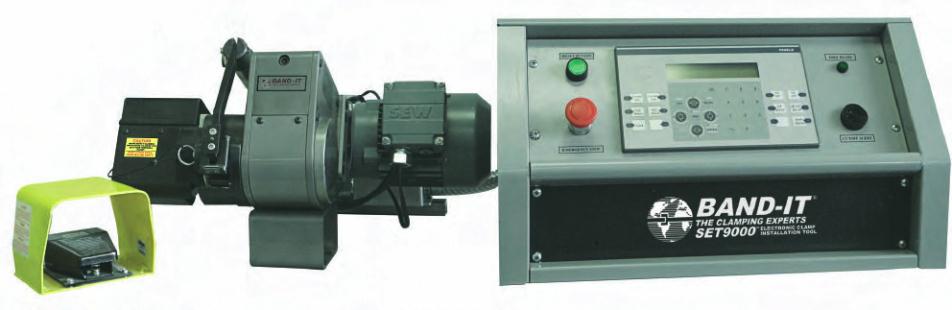

SET9000™
Electronic Clamp Installation Tool
Providing the highest level of clamping tension accuracy and repeatability,
the SET9000™ has interchangeable heads for use with Ultra-Lok®,
BAND-IT Junior® and Center Punch Clamps.
See page 3.
SET9000™
M18098 Ultra-Lok ® Head
SET9000™ Tool
Package Package Weight
Part No. Description Quantity Lbs Kg
SET9000 Electronic Clamp Installation Tool each 235 107
M18098 Ultra-Lok® head for SET9000™ each 1.53 .69
M16098 Junior® head for SET9000™ each 1.24 .56
M17598 Center Punch head for SET9000™ each 7.17 3.25
M16098 Junior® Head
Clamp Types:
• 1/2" and 3/4" Ultra-Lok® (page 32).
• 3/8", 1/2", 5/8" and 3/4" BAND-IT Jr.® Smooth ID (pages 33-34).
• 5/8" Center Punch (up to 6 1/2" diameter) (page 35).
Power Source:
110-120 VAC, 60hz 5A MAX.
Features:
• Unrivaled accuracy and repeatability.
• Automatic cut-off.
• Pre-set and variable tension setting.
• Electronically controlled clamp installation.
• 22 inch single-pull take-up.
• Automatic tail ejection.
• Interchangeable Ultra-Lok®, Junior® and Center Punch heads.
• Heavy duty gearing.
• All electric power.
• Clamp counter.
• Real-time status display.
SET9000™ Calibration device available – Contact BAND-IT for more information.
The SET9000™
gives you consistent
and accurate hose
assemblies every time!
