Page 32 - L table

Ultra-Lok® Preformed Clamp
Inside Package Package
Part No. Material* Width Thickness Diameter Quantity Weight
In mm In mm In mm Lbs Kg
UL2799** 201 SS 1/4 Hard 1/2 12.7 0.030 0.76 1 1/2 38 100/box 9.1 4.1
UL2839** 201 SS 1/4 Hard 1/2 12.7 0.030 0.76 2 508 100/box 10.6 4.8
UL2869** 201 SS 1/4 Hard 1/2 12.7 0.030 0.76 2 3/4 69 100/box 12.7 5.8
UL2919** 201 SS 1/4 Hard 1/2 12.7 0.030 0.76 4 101 100/box 16.7 7.6
UL2279 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 2 50 100/box 14.9 6.8
UL2109 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 2 3/4 69 50/box 9.2 4.2
UL2119 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 3 76 50/box 10.4 4.7
UL2129 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 3 1/2 88 50/box 10.8 4.9
UL2139 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 4 101 25/box 6.4 2.9
UL2149 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 4 1/2 114 25/box 7.0 3.2
UL2159 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 5 127 25/box 7.5 3.4
UL2709 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 5 1/4 139 25/box 7.3 3.3
UL2169 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 6 152 25/box 8.4 3.8
UL2179 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 6 1/2 165 25/box 10.2 4.6
UL2189 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 7 177 25/box 9.8 4.4
UL2199 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 8 203 25/box 11.0 5.0
UL2289 201 SS 1/4 Hard 3/4 19.1 0.030 0.76 9 228 10/box 5.1 2.31
**1/2" bands require M09387 for UL4000 or UL9010 tools
Also available in Ultra-Lok® Band see page 10
Ultra-Lok ® Tools
Package Package
Part No. Description Quantity Weight
Lbs Kg
UL4000 Ultra-Lok® 18-volt Rechargeable, Portable Tool each 17.8 6.7
UL9010 Ultra-Lok® 110-volt AC, Corded Electric Tool each 18.3 8.4
ULK249 Kit; Used to upgrade the tension body of the UL9000 each 0.4 0.2
and the UL9010, includes 3/4" and 1/2" shear plates
M09387 1/2" Shear plate for UL4000, upgraded UL9000 and UL9010 to each 0.1 0.1
convert from 3/4" Ultra-Lok® to 1/2" Ultra-Lok ® Clamp Systems
The Ultimate Clamping System
Ultra-Lok ® UL9010
Electric Tool
Ultra-Lok®
Preformed Clamp
32 303-320-4555
Ultra-Lok® UL4000
Rechargeable
Electric Tool

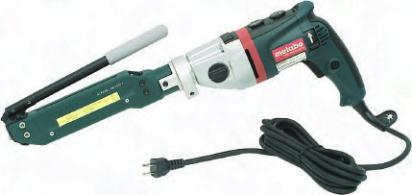

UL9010 Ultra-Lok® Electric Tool
• Ultra-Lok® clamps 1/2" & 3/4" either preformed or Band and Buckle can be applied.
• Locks under full tension.
• Adjustable speed and torque.
• Consistent, repeatable tensioning.
• Ideal for hose clamping.

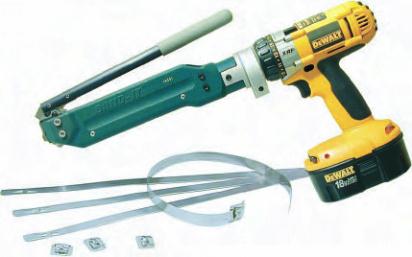

UL4000 Rechargeable or cordless Ultra-Lok® Tool
• Ultra-Lok® clamps 1/2" & 3/4" either preformed or Band and Buckle can be applied.
• Designed for portable requirements.
• Consistent repeatable tensioning.
• Locks under full tension.
• Ultra-Lok® clamps can be applied four times faster than conventional clamps.
• Supplied with spare battery and charger with Automatic Tune-Up feature.
For 1/2" Applications, must use M09387 1/2" Shear Plate.
*BAND-IT reserves the right to substitute material with equal or better corrosion resistance
and/or mechanical specifications.
See page 3. Printed on recycled paper
