Preformed Clamping Systems
A complete range to meet most application requirements
BAND-IT offers four Preformed Clamp Systems. Each Clamp System is designed to meet
your specific application requirements from the most to the least demanding.
Ultra-Lok
®
BAND-IT Jr
®
Smooth ID
Center Punch
Universal Clamp
Material
201 SS 1/4 Hard 316 SS / 201 SS / GCS
201 SS / GCS
201 SS
Diameter Range
1-1/2" - 9"
13/16" - 8"
13/16" - 8"
1" - 4-1/2"
Width
1/2", 3/4"
1/4" - 3/4"
3/8", 5/8"
1/4"
Tool Required
UL4000
C00169 with J00169,
S03869
A92079 A94079
UL9010
C00169 with J05069,
SM1700 T30069
IT1000 IT3000
C00269, IT2000
S35099, S75099
Strength
Best
Better
Better/Good
Good
Corrosion
Better
Best/Better/Good
Better
Better
Ultra-Lok
®
- Designed for quick installation, tightest clamping
force, and gap-free inside diameter to minimize leaks. The
best choice for demanding applications!
• Unique lock formed under full tension maximizing tightness.
• Lock is thicker and 2-3 times stronger than other preformed clamps.
• Smooth ID design reduces leak paths.
• Lock hood protects lock from snags.
• Double wrapped for additional strength.
• Install Ultra-Lok
®
clamping systems quickly using portable power tools.
BAND-IT Jr
®
Smooth ID
- Widest choice of sizes and materials
in a leak resistant design. Our most popular clamp!
• Vibration resistant lip wrap lock design. Lock is formed by a simple lever
movement. No hammering or crimping.
• Unique buckle nest and smooth ID design reduces leak paths compared to Center
Punch Clamps.
• Double wrapped for additional strength.
• Various materials for different corrosive environments.
• Install BAND-IT Jr.
®
Smooth ID performed clamps using the C00169 with J00169
adapter C00169 with J05069 heavy duty adapter, C00269, S35099, S75099 or IT
compatible tool.
Center Punch
- Used in less demanding applications where
minimizing leaks and longevity are not critical.
• Lock with impact from a hammer using a conical punch.
• Double wrapped using 201 Stainless Steel or galvanized carbon steel.
• Manufactured with thicker 201 Stainless Steel buckles than competitive clamps to
provide added locking strength.
• Not recommended for use with fittings that may crack as a result of impact.
• Install Center Punch clamping systems with the following hand tools: S03869, T30069.
Or for 5/8" Center Punch preformed clamps the Pneumatic SM1700 can be used.
Universal Clamp
- A single wrap preformed clamp is typically
used to clamp boots or sleeves.
• 1/4" band width with inside diameters ranging from 1" to 4.5".
• Not recommended for industrial hose clamping applications.
• Cost effective.
• Lock with a Tie-Lok
®
hand tool A92079, Ultra-Lok
®
hand tool A94079, or IT compatible
tool.

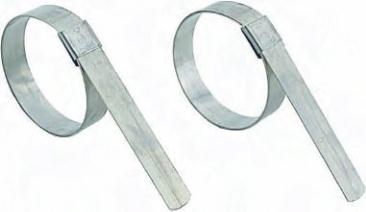

Ultra-Lok
®
Preformed Clamp
BAND-IT Jr.
®
Smooth ID
Preformed Clamp
Center Punch
Preformed Clamps
Universal Preformed
Clamp
30
