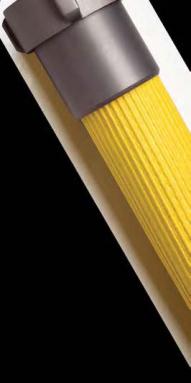

ATX
Performance Features:
Manufactured in similar process as TPX, except designed for higher
pressures, Snap-tite ATX utilizes a 3-ply design where the cover
and liner are extruded independently and double vulcanized to
guarantee a consistent, compact hose wall. The 3-ply design allows
us to weave the reinforcement tighter than a typical extruded rubber
hose which increases tensile strength and puncture resistance. ATX
has a stronger jacket which increases the operating pressure to
275 psi (1895 kPa) as compared to TPX.
SERVICE PROOF WEIGHT BOWL
SIZE BURST
TEST TEST SIZE
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: ATX40X50Y40S = ATX Hose, 4” ID by 50’ Length, Yellow, 4” Aluminum Storz Coupling
How to Order
ATX 40X50 Y 40 S
ATX 40 = 4” 50 = 50’ Y = Yellow 40 = 4” N = NH Blank=
50 = 5” 100 = 100’ R = Red 50 = 5” I = IPT Aluminum
O = Orange S = Storz
Nitrile Rubber Liner
Polyester Inner Jacket
Nitrile Rubber
Outer Jacket

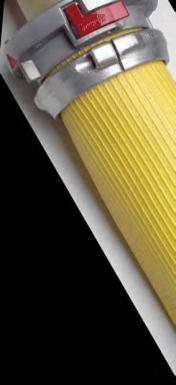

HFX
Performance Features:
Snap-tite HFX is a nitrile thru-the-weave, rubber covered fre hose
that utilizes both polyester and nylon yarn in the reinforcing jacket.
Under pressure, the polyester keeps the hose from “snaking”
where the nylon allows for controlled dilation, reducing friction loss
and generating higher fow rates. Our special rubber compound
provides a tough cover that resists heat and abrasion while
resisting many chemicals and most petroleum products. Extruded
thru-the-weave also means that no adhesives are used, therefore
no delamination.
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING OPTIONS
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: HFX40X50Y40S = HFX Hose, 4” ID by 50’ Length, Yellow, 4” Aluminum Storz Coupling
How to Order
HFX 40X50 Y 40 S
HFX 10 = 1” 50 = 50’ Y = Yellow 10 = 1” N = NH Blank= UL=
15 = 1-1/2” 100 = 100’ R = Red 15 = 1-1/2” I = IPT Aluminum Labeled
17 = 1-3/4” O = Orange 20 = 2” S = Storz
20 = 2” K = Black 25 = 2-1/2” BR=Brass UC=UL
25 = 2-1/2” 30 = 3” Rocker Lug Canada
30 = 3” 35 = 3-1/2” Labeled
40 = 4” 40 = 4” BR=Brass
50 = 5” 45 = 4-1/2” Pin Lug
60 = 6” 50 = 5”
60 = 6”
Construction:
Nitrile Rubber Cover & Liner,
Polyester/Nylon Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Coupling:
Aluminum or Brass NH/NST
or IPT Threaded & Aluminum
Storz options
Approvals: Most sizes UL and
ULC (UL Canada) listed.
(See chart below for sizes)
Hose Colors:
LISTED
Polyester/Nylon
Fabric Reinforcement
Nitrile Rubber
Thru-the-Weave
(for 50’ coupled)
Operating Pressure not to Exceed 90% of Service Test Pressure
Operating Pressure not to Exceed 90% of Service Test Pressure
Extruded Rubber Hose
- Type HFX
3-Ply Rubber Hose-High Pressure
- Type ATX
I -11
SERVICE PROOF WEIGHT BOWL Certifcation SIZE BURST
TEST TEST SIZE Available (for 50’ coupled)
PSI (kPa) PSI (kPa) PSI (kPa) LBS KG IN
4” 300 (2070) 600 (4140) 900 (6200) 64 29 4-5/16
5” 300 (2070) 600 (4140) 900 (6200) 82 37.2 5-5/16
Construction:
Nitrile Rubber Cover
& Liner, 100% Polyester
Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Coupling:
Aluminum NH/NST or
IPT Threaded & Aluminum
Storz options.
Hose Colors:
PSI (kPa) PSI (kPa) PSI (kPa) LBS KG IN
1” 300 (2070) 600 (4140) 900 (6200) 8 3.6 1-3/16
1-1/2” 300 (2070) 600 (4140) 900 (6200) 13 5.9 1-13/16 UL, UC
1-3/4” 300 (2070) 600 (4140) 900 (6200) 17 7.7 2-1/16 UL, UC
2” 300 (2070) 600 (4140) 900 (6200) 18 8.1 2-5/16 UL
2-1/2” 300 (2070) 600 (4140) 900 (6200) 26 11.8 2-13/16 UL, UC
3” 300 (2070) 600 (4140) 900 (6200) 33 15 3-5/16
4” 200 (1380) 400 (2760) 700 (4825) 45 20.4 4-5/16 UL, UC
5” 200 (1380) 400 (2760) 600 (4140) 53 24 5-5/16 UL, UC
6” 150 (1035) 300 (2070) 500 (3450) 67 30.4 6-5/16
