LD
XL
Performance Features
Snap-tite XL is our lightest weight nitrile rubber covered fre hose,
manufactured using a unique process which permanently bonds
the polyester reinforcement to the nitrile rubber cover/liner. XL is an
easily coiled, non-kinking, high fow, lightweight hose that also resists
abrasion, chemicals and weathering by ozone.
XL’s unique extruded thru-the-weave construction provides a fexible,
easy to maneuver hose that is easy to move and store. The interlocking
matrix also means no adhesives are used, therefore no delamination.
Performance Features

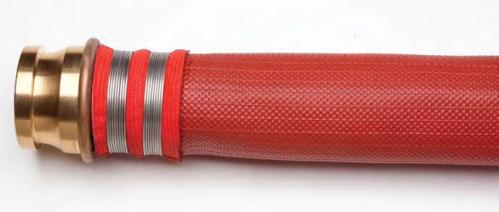

Snap-tite LD is a premium quality, nitrile rubber covered fre hose
that is manufactured using a unique process which permanently
bonds the polyester reinforcement to the nitrile rubber cover/liner.
LD is an easily coiled, non-kinking, high fow, lightweight hose that
also resists abrasion, chemicals and weathering by ozone. Extruded
thru-the-weave construction means that no adhesives are used,
therefore no delamination.
TYPE
HOSE
HOSE
COLOR
COUPLING
THREAD
COUPLING
I.D.
X LENGTH
SIZE
TYPE
MATERIAL
Part Number Example:
LD17X50R15NBR
= LD Hose, 1-3/4” ID by 50’ Length, Red, 1-1/2” Brass Rocker Lug
- NH/NST Threaded Coupling
How to Order
LD
17X50
R
15
N
LD
10 = 1”
50 = 50’
Y = Yellow
10 = 1”
N = NH
Blank=
15 = 1-1/2”
100 = 100’
R = Red
15 = 1-1/2”
I = IPT
Aluminum
17 = 1-3/4”
K = Black
20 = 2”
BW =
BR= Brass
20 = 2”
B = Blue
25 = 2-1/2”
British
Rocker Lug
25 = 2-1/2”
Instanta-
BP= Brass
neous
Pin Lug
G= Gunmetal
(BW Thread
only)
BR
TYPE
HOSE
HOSE
COLOR
COUPLING
THREAD
COUPLING
I.D.
X LENGTH
SIZE
TYPE
MATERIAL
Part Number Example:
XL17X50O15NBR
= XL Hose, 1-3/4” ID by 50’ Length, Orange, 1-1/2” Brass Rocker Lug
- NH/NST Threaded Coupling
How to Order
XL
17X50
O
15
N
XL
15 = 1-1/2”
50 = 50’
O = Orange
15 = 1-1/2”
N = NH
Blank=
17 = 1-3/4”
100 = 100’
20 = 2”
I = IPT
Aluminum
25 = 2-1/2”
25 = 2-1/2”
BW =
BR= Brass
British
Rocker Lug
Instanta-
BP= Brass
neous
Pin Lug
G= Gun metal
(BW Thread
only)
BR
Construction:
Nitrile Rubber Cover
& Liner w/Nylon Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Coupling:
Aluminum or Brass NH/NST
or IPT Threaded,
British Instantaneous
Approvals:
Kitemark License KM 60099 to
BS-6391 Type 3, ABS Type
Approval, Australian AS-5195
and AS-2792-H
Hose Colors:
Construction:
Nitrile Rubber Cover
& Liner w/Nylon
Reinforcement
Temperature Range:
-5° to 200°F (-15° to 95°C)
Coupling:
Aluminum or Brass NH/NST
or IPT Threaded,
British Instantaneous
Approvals:
Manufactured to meet
BS-6391 Type 2 specifcations
Hose Colors:
SIZE SERVICE PROOF
BURST
WEIGHT
FLAT HOSE BED BOWL
TEST
TEST
(For 50’ coupled)
WIDTH
Volume (100’)
SIZE
Lightweight Extruded Rubber Hose
-
Type LD
Lightweight Extruded Rubber Hose
-
Type XL
I -12
Nylon Fabric
Reinforcement
Nitrile Rubber
Thru-the-Weave
Nylon Fabric
Reinforcement
Nitrile Rubber
Thru-the-Weave
Operating Pressure not to Exceed 90% of Service Test Pressure
Operating Pressure not to Exceed 90% of Service Test Pressure
PSI (kPa) PSI (kPa) PSI (kPa)
LBS (KG)
IN
FT 3
IN
1”
250 (1725) 500 (3450) 750 (5170)
8 (3.6)
1.75
1.0
1-3/16
1-1/2” 250 (1725) 500 (3450) 750 (5170)
10 (4.5)
2.50
1.5
1-13/16
1-3/4” 250 (1725) 500 (3450) 750 (5170)
13 (5.9)
2.90
2.0
2-1/16
2”
250 (1725) 500 (3450) 750 (5170)
15 (6.8)
3.30
2.0
2-3/16
2-1/2” 250 (1725) 500 (3450) 750 (5170)
19 (8.3)
4.10
2.5
2-13/16
SIZE SERVICE PROOF
BURST
WEIGHT
FLAT HOSE BED BOWL
TEST
TEST
(For 50’ coupled)
WIDTH
Volume (100’)
SIZE
PSI (kPa) PSI (kPa)
PSI (kPa)
LBS (KG)
IN
FT 3
IN
1-1/2” 200 (1380) 400 (2760) 600 (4140)
9 (4.1)
2.50
1.5
1-13/16
1-3/4” 200 (1380) 400 (2760) 600 (4140)
11 (5)
2.90
2.0
2-1/16
2-1/2” 200 (1380) 400 (2760) 600 (4140)
15 (6.8)
4.10
2.5
2-13/16
