TPX
3-Ply Nitrile Rubber Hose
Traditionally manufactured extruded hose can vary in thickness, becoming bulky
and heavy. Snap-tite TPX utilizes a unique 3-ply design where the cover and liner
are extruded independently and double vulcanized to guarantee a consistent,
compact hose wall. However, the strength of TPX is in its reinforcement. Snap-tite’s
TPX is made of 100% high tenacity, polyester fbers. Polyester is known for its
strength, but also has the ability when stretched, to return to its original size and
shape. Tightly woven high strength polyester reinforcement means a longer wear
life, greater tensile strength, and superior puncture resistance.
Properties and Construction
• Ribbed nitrile rubber cover lowers drag force and provides long
service life.
• Smooth nitrile rubber liner keeps pressure drop to a minimum.
• Polyester reinforcement, tightly woven, twill weave resists puncture.
• Hose remains fexible to temperatures as low as -5°F (-20°C) and is
resistant to ozone, oxidation, and most chemicals or petroleum products.
• Excellent for tough applications such as construction sites, mines and
industrial frefghting.
• Snap-tite TPX is manufactured within our ISO-9001: 2000 certifed quality
assurance system.
How to Order
Nitrile Rubber Liner
Polyester Inner Jacket
Nitrile Rubber
Outer Jacket
TYPE
HOSE
HOSE
COLOR
COUPLING
THREAD
COUPLING
I.D.
X LENGTH
SIZE
TYPE
MATERIAL
Part Number Example:
TPX40X50Y40S
= TPX Hose, 4” ID by 50’ Length, Yellow, 4” Aluminum Storz Coupling
TPX
40X50
Y
40
S
TPX
15 = 1-1/2”
50 = 50’
Y = Yellow
15 = 1-1/2”
N = NH
Blank=
17 = 1-3/4”
100 = 100’
R = Red
20 = 2”
I = IPT
Aluminum
20 = 2”
K = Black
25 = 2-1/2”
S = Storz
25 = 2-1/2”
30 = 3”
BR= Brass
30 = 3”
35 = 3-1/2”
Rocker Lug
40 = 4”
40 = 4”
50 = 5”
50 = 5”
BP= Brass
60 = 6”
60 = 6”
Pin Lug
80 = 8”
8” only available in
K=Black

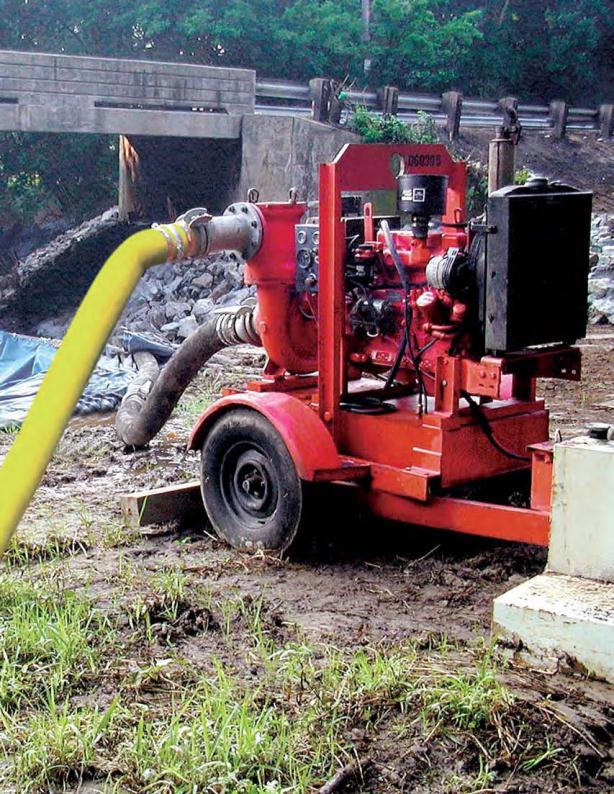

Pump shown is a Godwin Dri-Prime
®
Pump
Godwin and Dri-Pump are registered trademarks of the
Godwin Pumps of America Corporation
-
Type TPX
I -10
SIZE
SERVICE
PROOF
BURST
WEIGHT
FLAT
HOSE BED
BOWL
TEST
TEST
(For 50’ Coupled)
WIDTH
Volume (100’)
SIZE
PSI (kPa)
PSI (kPa)
PSI (kPa)
LBS (KG)
IN
FT 3
IN
1-1/2”
300 (2070)
600 (4140)
1000 (6900)
17 (8)
2.80
2.0
1-13/16
1-3/4”
300 (2070)
600 (4140)
1200 (8275)
19 (9)
3.25
2.5
2-1/16
2”
300 (2070)
600 (4140)
1200 (8275)
22 (10)
3.60
2.5
2-5/16
2-1/2”
300 (2070)
600 (4140)
1000 (6900)
30 (13.6)
4.30
3.5
2-13/16
3”
300 (2070)
600 (4140)
900 (6200)
38 (17.2)
5.10
4.5
3-5/16
4”
250 (1725)
500 (3450)
750 (5170)
45 (21)
6.60
5.0
4-5/16
5”
225 (1550)
450 (3100)
675 (4650)
55 (25)
8.20
7.5
5-5/16
6”
150 (1035)
300 (2070)
500 (3450)
70 (32)
9.90
12.5
6-5/16
8”
100 (690)
200 (1380)
400 (2760)
125 (57)
12.75
N/A
N/A
Operating Pressure not to Exceed 90% of Service Test Pressure
Hose Colors:
Construction:
3-Ply Nitrile Rubber Cover/Liner
Polyester Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Couplings Available:
Aluminum or Brass NH/NST or
IPT Threaded & Aluminum Storz
options
Approvals:
MSHA Approved Product
Available Upon Special Request
