Rubber Strip/Tape
PRESSURE SENSITIVE ADHESIVE
BACKING (Silicone based or acrylic)
Silicone sheet material (both rubber and
sponge) and strip materials, as well as
fabricated gaskets and extrusions, can
be supplied with a pressure sensitive
adhesive backing protected by release
paper. Material is also available with
adhesive on both sides.

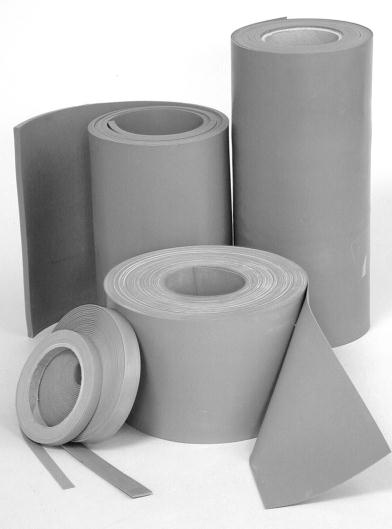

At Ja-Bar, we manufacture silicone
rubber tapes. These are provided either
in a resilient, elastic, solid silicone
rubber, offered in a range of durometer
hardness, or, in a easily compressible
silicone rubber sponge. Both products
offer extreme temperature capability,
high elongation, low moisture
absorption, chemical resistance and
excellent ozone, radiation, and
weathering characteristics.
Their pronounced flexibility makes these
tapes ideal when conforming to
irregular surfaces. Wrapping around a
cylindrical surface or right angle bends
are accomplished without cutting,
splicing, or cementing corners.
Ja-Bar produces both silicone rubber
solid and silicone rubber sponge
products with either a coating of silicone
based pressure sensitive adhesive
backing, for maximum temperature
advantage or, an acrylic based pressure
sensitive adhesive to provide the
greatest tack capability. Properties for
adhesives are listed as follows:
Silicone rubber tape, available in both
solid and sponge, and with or without
pressure sensitive adhesive, is
manufactured in thickness from 1/32
thru 1/2 in. and is slit to the requested
width. Sizes shown below are the most
popular. Custom widths to your
application are easily provided.
Dash No. “A” “B”
0101 .031 .25
0102 .031 .50
0103 .031 .75
0104 .031 1.00
0105 .031 1.50
0106 .031 2.00
0107 .062 .250
0108 .062 .500
0109 .062 .750
0110 .062 1.00
0111 .062 1.50
0112 .125 .250
0113 .125 .500
0114 .125 .750
0115 .125 1.00
0116 .125 1.50
0117 .125 2.00
0118 .188 .500
0119 .188 .750
0120 .188 1.00
0121 .188 1.50
0122 .188 2.00
0123 .250 .500
0124 .250 .750
0125 .250 1.00
0126 .250 1.50
0127 .250 2.00
0128 .375 .500
0129 .375 .750
0130 .375 1.00
0131 .375 1.50
0132 .375 2.00
0133 .500 .500
0134 .500 .750
0135 .500 1.00
0136 .500 1.50
PHYSICAL PROPERTIES ACRYLIC PSA BACKING
JB 0202 PEEL & PLACE SPONGE JB 2515 PEEL & PLACE SOLID
Useful Temperature -80 / + 400ºF -80 / + 400ºF
Shore Hardness 40–60 (OO) 50 (A)
Compression Set %
(after 22 hrs.) 50 25
Elongation % 200 300
Water Absorption % (max) 5 5
Quick Tack Lbs/Sq.In.(kpa) 5 (34) 5 (34)
Peel Adhesion Lbs/In. (n/m) 6 (1050) 6 (1050)
Shelf-Life (recommended) 6 Months 6 Months
JB 0202 PEEL & PLACE SPONGE JB 2515 PEEL & PLACE SOLID
Closed Cell Yes N/A
Useful Temperature -100 / + 400ºF -100 / + 400ºF
Shore Hardness 40–60 (OO) 50 (A)
Compression Set %
(after 22 hrs.) 50 25
Elongation % 200 300
Water Absorption % (max) 5 5
Adhesive Strength (onces/inch)
@ Test Temperature -94ºF
@ Test Temperature +392ºF
@ Test Temperature +482ºF
100+
48
48
100+
48
48
Shelf-Life (recommended) 6 Months 6 Months
PHYSICAL PROPERTIES SILICONE PSA BACKING
Series 1700
