Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
Series 1400
Series 1500
Series 1600

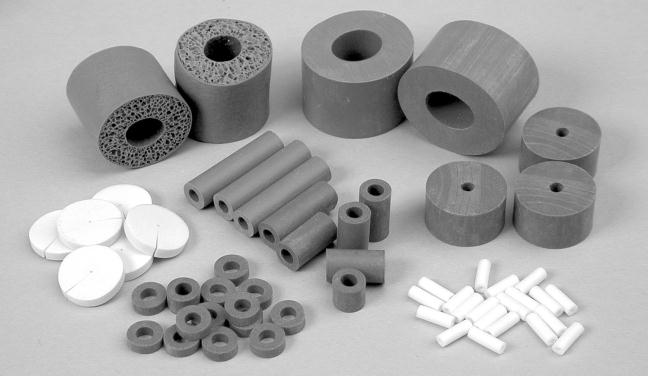

Washer and Bushings
Series 1400
Ja-Bar precision cuts tubing to length for
gaskets, heater element bushings,
capacitor bushings, damping pads, seals
and other products. Standard size range
from .032" to 1" I.D. to 6" long. Parts are
produced in any standard material color
to meet ZZ-R-765 or applicable MIL,
AMS ASTM specifications. Or, we’ll
manufacture to commercial grades or to
your own specifications. Because we
control all facets of production (we
produce the base tubing material and
do our own cutting), delivery times are
minimized and quality of the finished
part is maximized
Heat transfer pads, in sizes to 24" x 24"
are fabricated of silicone rubber bonded
to aluminum or steel. They are used in
hot roll leaf stamping for heat sealing
application at temperature to 500ºF.
Type I pads use silicone rubber from
1/32" through _" thick bonded to metal
from 1/32" through _". Type II pads (US
Patent No. 3507739), which add a
mechanical bond achieved through use
of a perforated metal backing, provide
superior life in most applications. Floral,
wood grain and other designs can be
produced from customer- supplied
metal masters.

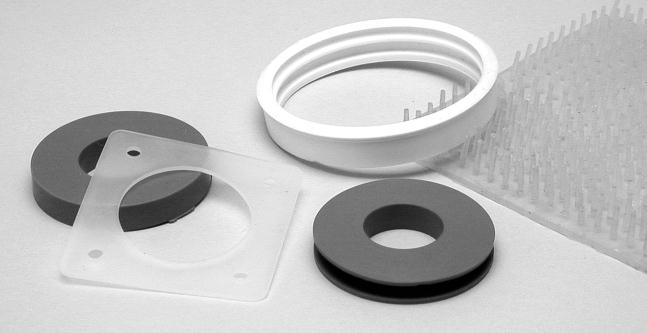

Injection Molding
Liquid and Gum
Series 1600
Compared
with
even
organic
elastomers, this new process using liquid
silicones offers may advantages:
• Competitive costs
• High temperature resistance
• Low temperature resistance
• Dielectric properties
• Low toxicity
• Aging resistance
The system is virtually flash-free, initial
mold costs are substantially lower due to
the faster cycle times.
Liquid injected silicone rubber parts are
virtually odorless and inert
ADVANTAGES:
1) Platinum curing of liquid silicone insures maximum crosslinking of polymer during cure.
2) Inert, odorless parts, which comply with FDA as well as USP designations.
3) Parts can be produced in extreme low durometer hardness, down to 5 shore “A”, creating
Goods ideal for gaskets used in cushioning or shock absorption.
Heat Transfer Pads
Series 1500
