25 Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
Series 1700

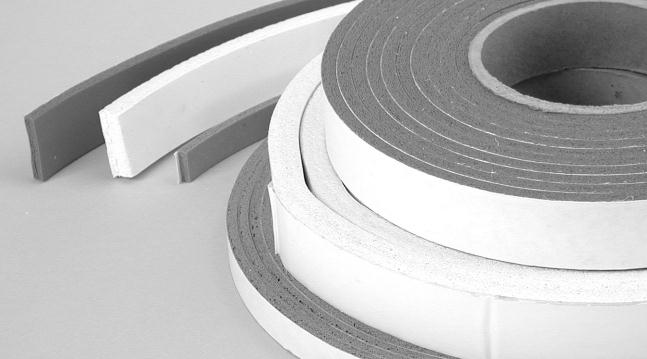

JB 9000 SILICONE FOAM TAPE
PHYSICAL PROPERTIES ACRYLIC PSA BACKING
Ja-Bar 0202 Peel & Place Sponge
Useful Temperature -60 / + 400ºF
Shore Hardness 5–10 (OO)
Compression Set % (after 22 hrs.) 9
Elongation % 110
Tensile Strength 10
Smoke Generation
AITM 2.0007 B Non Flamming Mode
ASTM E 662 Non Flamming Mode
DS @ 4 Minutes 45 Average
DS @ 4 Minutes 45 Average
Flamablility (foam) UL 94 V O
Duration Of Flamming 40 Seconds
Quick Tack Lbs/Sq. In. (kpa) 5 (34)
Peel Adhesion Lbs/In. (n/m) 6 (1050)
Shelf-Life (recommended) 6 Months
Thickness Widths
(standard)
Lengths
(standard)
.031 .0125, .250, .375, .500, .625, .750, 1.00, 1.500 2.00, 2.500, 3.00, 6.00 30 LINEAL FEET
.062 .0125, .250, .375, .500, .625, .750, 1.00, 1.500, 2.00, 2.500, 3.00, 6.00 30 LINEAL FEET
.125 .250, .375, .500, .625, .750, 1.00, 1.500, 2.00, 2.500, 3.00, 6.00 30 LINEAL FEET
.188 .250, .375, .500, .625, .750, 1.00, 1.500, 2.00, 2.500, 3.00, 6.00 25 LINEAL FEET
.250 .375, .500, .625, .750, 1.00, 1.500, 2.00, 2.500, 3.00, 6.00 25 LINEAL FEET
.375 .500, .625, .750, 1.00, 1.500, 2.00, 2.500, 3.00, 6.00 15 LINEAL FEET
Custom widths not shown available upon request.
STANDARD AVAILABLE WIDTHS
Both JB 0202 sponge and JB 2515 solid, may be slit to your desired width and
length requirements. Below are our standard thickness, width, and length rolls.
Most thickness shown, are inventory items and require but a few days for
fabrication to ship for your requirement.
In addition to our JB 0202 closed cell,
silicone rubber sponge tape, we offer a
silicone foam. Our JB 9000 foam tape,
provides a low density, light weight,
silicone foam. Having low compression
set characteristics, high heat capability,
low outgassing ability, and FDA
suitability, this product is ideal for many
specialized applications.
Rubber Strip/Tape
Series 1700
