19

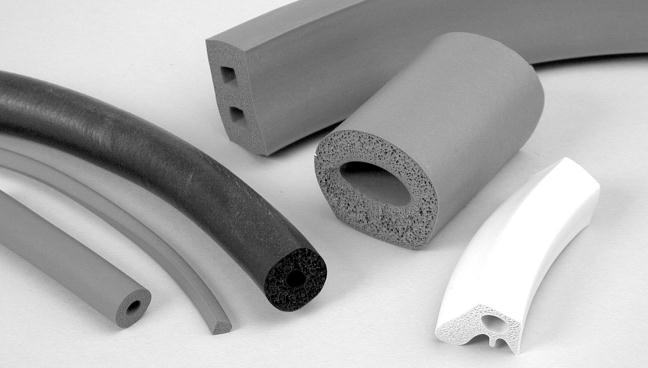

Ja-Bar produces extrusions of closed cell
silicone sponge for use as gaskets and
seals under lowclosure loads in
accordance with AMS and application
Mil specification. We produce extruded
cords in diameters from 1/32" to 6";
square sections from 1/16" x 1/16" to
4" x 4" ; rectangular sections from 1/32"
x 4" to 1" x 10" and sponge tubing for
thermal insulation applications. We also
produce custom shapes and we’ll
develope special compounds to meet
specific requirements. A large stock of
sponge in most popular sizes is
maintained, ready for immediate
shipment.
Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
AVAILABLE SPECIFICATIONS
AMS 3193, AMS 3194, AMS 3195,
AMS 3196, MIL R 46089,
ASTM D 1056, 2D2, 2D3, SAE 3195,
MIL C 3133, TE 7, TE 12
Dash No. Diameter
0101 .062
0102 .093
0103 .125
0104 .156
0105 .188
0106 .218
0107 .250
0108 .312
0109 .375
Dash No. Diameter
0110 .437
0111 .500
0112 .562
0113 .625
0114 .750
0115 1.00
0116 1.25
0117 1.50
0118 2.00
FIGURE 2.4 - Cord stock cross-section
Rubber Extrusions
Series 1200
FEATURES FOR SILICONE SPONGE:
• High temperature capability, standard for silicone
• Easy compressibility for applications requiring a lower closure sealing force
• Silicone sponge is closed cell, minimizing water absorption.
• Smooth skin all sides

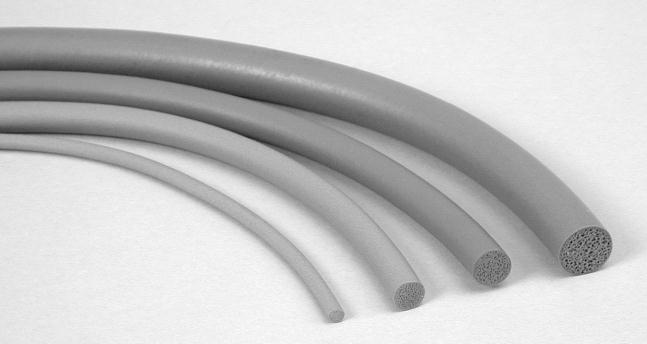

series 1221
Sponge Silicone
Rubber Cord Stock
